时序差分学习 — 实验#
验证 temporal-difference-learning.tex 中的核心结论：
TD vs MC（随机游走）：同一份数据下，TD(0) 的价值估计比蒙特卡洛更准（偏差-方差权衡）；
N 步回报：\(n\) 越大越接近 MC（低偏差高方差），\(n\) 越小越依赖 bootstrapping（高偏差低方差）；
on-policy vs off-policy（Cliff Walking）：SARSA 学到保守安全的策略，Q-Learning 学到最优但训练时更“冒险”。
环境：
5 状态随机游走（Sutton & Barto 例 6.2）：状态 A–E，左端终点奖励 0、右端终点奖励 +1，\(\gamma=1\)；
CliffWalking-v0（Gymnasium，Sutton & Barto 例 6.6）：\(4\times12\) 悬崖行走，普通步 \(-1\)，掉下悬崖 \(-100\) 回到起点。
输出图：
fig1_random_walk_mc_vs_td.pdffig2_nstep_bias_variance.pdffig3_cliff_sarsa_vs_qlearning.pdf
预计运行时间：< 2 分钟（CPU）。
%matplotlib inline
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
# ── Academic style ──────────────────────────────────────────────
mpl.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman', 'DejaVu Serif', 'serif'],
'font.size': 11,
'axes.labelsize': 12,
'axes.titlesize': 13,
'axes.titleweight': 'bold',
'axes.titlepad': 10,
'xtick.labelsize': 10,
'ytick.labelsize': 10,
'legend.fontsize': 10,
'legend.framealpha': 0.9,
'legend.edgecolor': '#CCCCCC',
'figure.dpi': 150,
'axes.spines.top': False,
'axes.spines.right': False,
'axes.grid': True,
'grid.color': '#DDDDDD',
'grid.linestyle': '--',
'grid.linewidth': 0.6,
'lines.linewidth': 2.0,
'savefig.bbox': 'tight',
'pdf.fonttype': 42,
})
# Color palette (same as other chapters)
C_BLUE = '#2166AC'
C_RED = '#D6604D'
C_PURPLE = '#762A83'
C_GREEN = '#4DAC26'
C_GRAY = '#888888'
try:
import gymnasium as gym
GYM_BACKEND = 'gymnasium'
except ImportError:
import gym
GYM_BACKEND = 'gym'
OUTDIR = '.'
print(f'Setup complete (gym backend: {GYM_BACKEND}).')
Setup complete (gym backend: gymnasium).

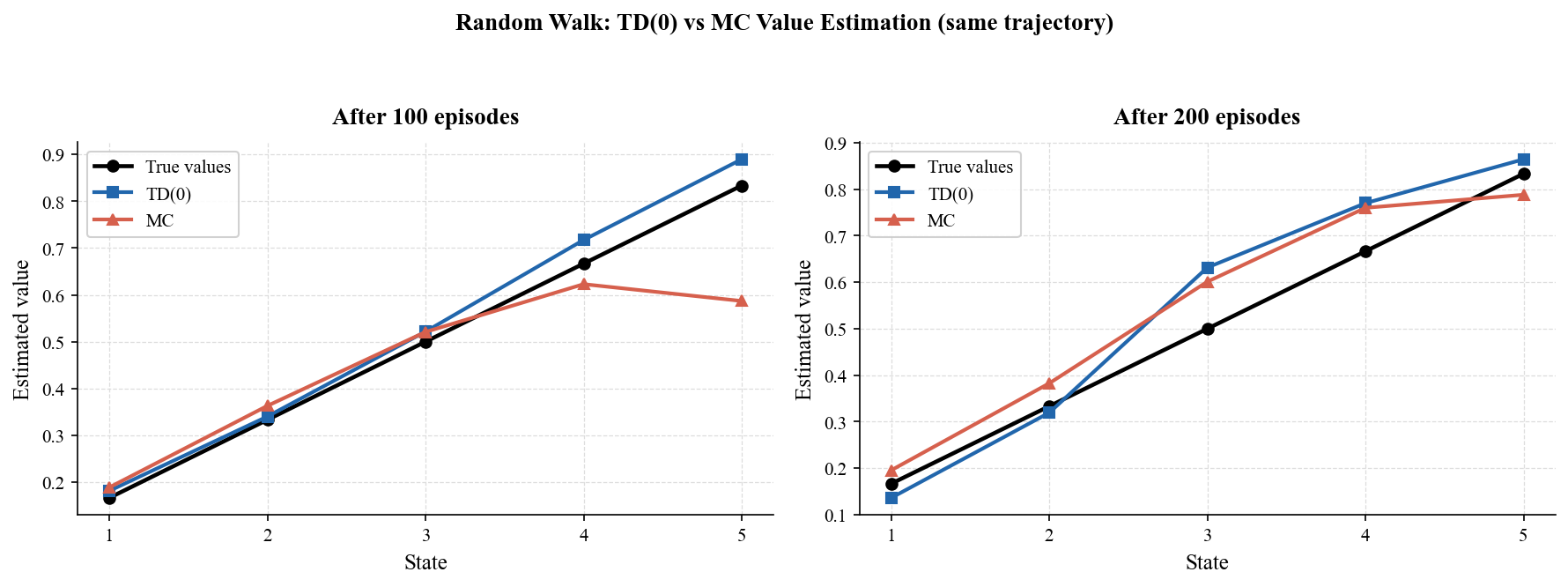

Figure 1 — 随机游走：TD(0) 与 MC 的价值估计#
5 个非终止状态 A–E（编号 1–5），左右各一个终点。每步以 \(0.5\) 向左/右走；进入右终点得 \(+1\)，进入左终点得 \(0\)。真实价值 \(v(s)=s/6\)。
用同一局轨迹（固定种子）分别跑 MC 与 TD(0)，步长沿用 Sutton & Barto 图 6.2 的设置（\(\alpha_{\text{TD}}=0.1\)，\(\alpha_{\text{MC}}=0.01\)）：MC 必须等整局结束、且需要较小步长来平均回报；TD(0) 每步就地修正、可以用更大的步长，因而更快贴近真实价值。
TRUE_V = np.array([1, 2, 3, 4, 5]) / 6.0 # 状态 1..5 的真实价值
GAMMA = 1.0
ALPHA_TD = 0.1 # TD(0) 步长
ALPHA_MC = 0.01 # MC 步长（Sutton & Barto 图 6.2 的设置）
def one_episode(rng):
"""从状态 3（C）出发跑一局，返回 (状态序列, 奖励序列)。"""
s = 3
states = [s]
rewards = []
while True:
s = s + rng.choice([-1, 1])
if s == 0: # 左终点：奖励 0，结束
rewards.append(0.0); break
elif s == 6: # 右终点：奖励 +1，结束
rewards.append(1.0); break
else:
rewards.append(0.0)
states.append(s)
return states, rewards
def mc_predict(episodes, alpha, seed):
"""蒙特卡洛：跑完整局后用真实回报 G_t 增量更新 V(s) += α(G_t - V(s))。"""
rng = np.random.default_rng(seed)
V = np.zeros(7)
for _ in range(episodes):
states, rewards = one_episode(rng)
G = 0.0
for s, r in zip(reversed(states), reversed(rewards)):
G = r + GAMMA * G
V[s] += alpha * (G - V[s])
return V
def td0_predict(episodes, alpha, seed):
"""TD(0)：每步用一步奖励 + 对下一步的当前估计更新 V(s) += α[R+γV(s')-V(s)]。"""
rng = np.random.default_rng(seed)
V = np.zeros(7)
for _ in range(episodes):
states, rewards = one_episode(rng)
for t in range(len(rewards)):
s = states[t]; ns = states[t + 1] if t + 1 < len(states) else None
r = rewards[t]
target = r if ns is None else r + GAMMA * V[ns]
V[s] += alpha * (target - V[s])
return V
def rms(V):
return np.sqrt(np.mean((V[1:6] - TRUE_V) ** 2))
# 同一局轨迹（固定种子）的价值估计
SEED = 0
N_RUNS = 100
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
for ax, n_ep in zip(axes, (100, 200)):
V_mc = mc_predict(n_ep, ALPHA_MC, SEED)
V_td = td0_predict(n_ep, ALPHA_TD, SEED)
x = np.arange(1, 6)
ax.plot(x, TRUE_V, 'k-o', label='True values', linewidth=2.2)
ax.plot(x, V_td[1:6], marker='s', color=C_BLUE, label='TD(0)')
ax.plot(x, V_mc[1:6], marker='^', color=C_RED, label='MC')
ax.set_xlabel('State')
ax.set_ylabel('Estimated value')
ax.set_title(f'After {n_ep} episodes')
ax.set_xticks(x)
ax.legend()
# 100 局平均的个体 RMS（Sutton & Barto 的指标）
mc_rms = np.mean([rms(mc_predict(n_ep, ALPHA_MC, s)) for s in range(N_RUNS)])
td_rms = np.mean([rms(td0_predict(n_ep, ALPHA_TD, s)) for s in range(N_RUNS)])
print(f'after {n_ep:5d} episodes: mean RMS over {N_RUNS} runs '
f'MC = {mc_rms:.3f} TD(0) = {td_rms:.3f}')
fig.suptitle('Random Walk: TD(0) vs MC Value Estimation (same trajectory)',
fontsize=13, fontweight='bold')
fig.tight_layout(rect=[0, 0, 1, 0.93])
fig.savefig(f'{OUTDIR}/fig1_random_walk_mc_vs_td.pdf', bbox_inches='tight')
plt.show()
print('Saved fig1_random_walk_mc_vs_td.pdf')
after 100 episodes: mean RMS over 100 runs MC = 0.149 TD(0) = 0.062
after 200 episodes: mean RMS over 100 runs MC = 0.070 TD(0) = 0.055
Saved fig1_random_walk_mc_vs_td.pdf

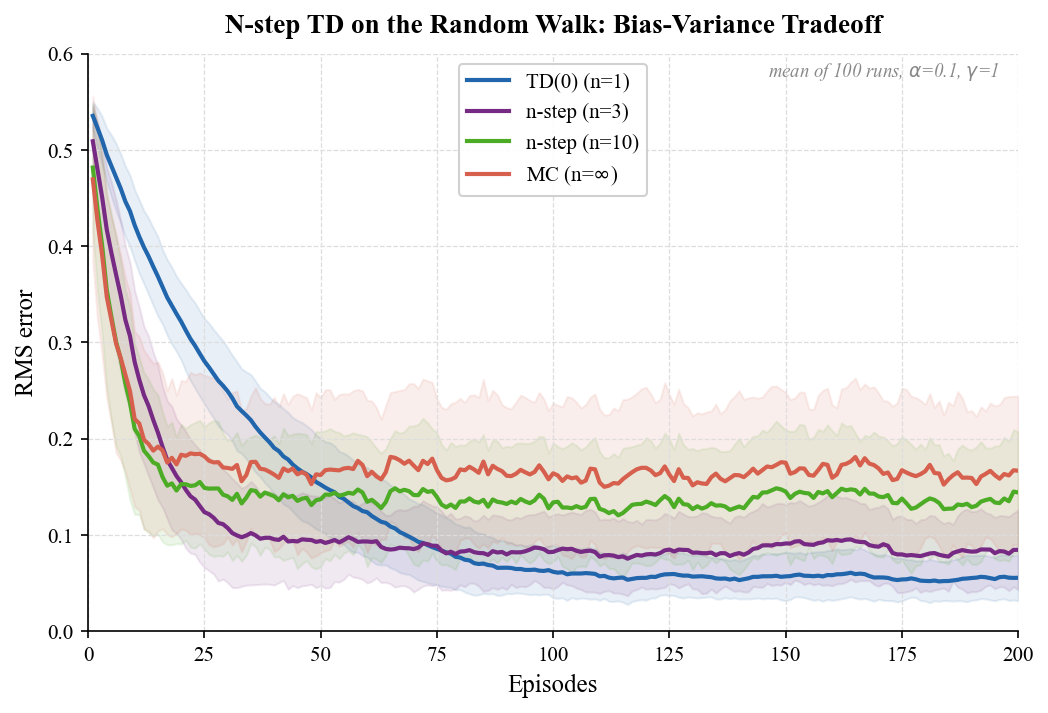

Figure 2 — N 步回报：偏差与方差的权衡#
\(n\) 步回报 \(G_t^{(n)} = R_{t+1}+\gamma R_{t+2}+\cdots+\gamma^{n-1}R_{t+n}+\gamma^n V(S_{t+n})\) 是 TD(0)（\(n=1\)，全 bootstrapping）与 MC（\(n\to\infty\)，无 bootstrapping）之间的连续谱。同一 \(\alpha=0.1\) 下，平均 100 局 5 状态随机游走的 RMS 误差随时间（局数）的变化如下。
def run_nstep_predict(n, n_episodes, alpha, seed):
"""n 步 TD 预测：目标为 G_t^{(n)}（n 个真实奖励 + 第 n 步处 bootstrap）。n 足够大时退化为 MC。"""
rng = np.random.default_rng(seed)
V = np.zeros(7)
rms_curve = []
for _ in range(n_episodes):
states, rewards = one_episode(rng)
T = len(rewards)
for t in range(T):
horizon = min(t + n, T)
G = sum(GAMMA ** (k - t) * rewards[k] for k in range(t, horizon))
if t + n < T:
G += GAMMA ** n * V[states[t + n]]
V[states[t]] += alpha * (G - V[states[t]])
rms_curve.append(rms(V))
return rms_curve
N_EP_MAX, N_RUNS2 = 200, 100
N_VALUES = [1, 3, 10, 10 ** 6]
NAMES = {1: 'TD(0) (n=1)', 3: 'n-step (n=3)', 10: 'n-step (n=10)', 10 ** 6: 'MC (n=$\\infty$)'}
STYLES = {1: C_BLUE, 3: C_PURPLE, 10: C_GREEN, 10 ** 6: C_RED}
curves = {}
for n in N_VALUES:
rs = np.stack([run_nstep_predict(n, N_EP_MAX, ALPHA_TD, s) for s in range(N_RUNS2)])
curves[n] = rs
print(f'n={NAMES[n]:16s} final RMS = {rs.mean(axis=0)[-1]:.4f}')
fig, ax = plt.subplots(figsize=(8, 5))
x = np.arange(1, N_EP_MAX + 1)
for n in N_VALUES:
mean, std = curves[n].mean(axis=0), curves[n].std(axis=0)
ax.plot(x, mean, label=NAMES[n], color=STYLES[n])
ax.fill_between(x, mean - std, mean + std, alpha=0.10, color=STYLES[n])
ax.set_xlabel('Episodes')
ax.set_ylabel('RMS error')
ax.set_title('N-step TD on the Random Walk: Bias-Variance Tradeoff')
ax.set_xlim(0, N_EP_MAX)
ax.set_ylim(0, 0.6)
ax.legend()
ax.text(0.98, 0.96,
f'mean of {N_RUNS2} runs, $\\alpha$={ALPHA_TD}, $\\gamma$=1',
transform=ax.transAxes, ha='right', fontsize=9, color=C_GRAY, style='italic')
fig.savefig(f'{OUTDIR}/fig2_nstep_bias_variance.pdf', bbox_inches='tight')
plt.show()
print('Saved fig2_nstep_bias_variance.pdf')
n=TD(0) (n=1) final RMS = 0.0554
n=n-step (n=3) final RMS = 0.0844
n=n-step (n=10) final RMS = 0.1440
n=MC (n=$\infty$) final RMS = 0.1666
Saved fig2_nstep_bias_variance.pdf

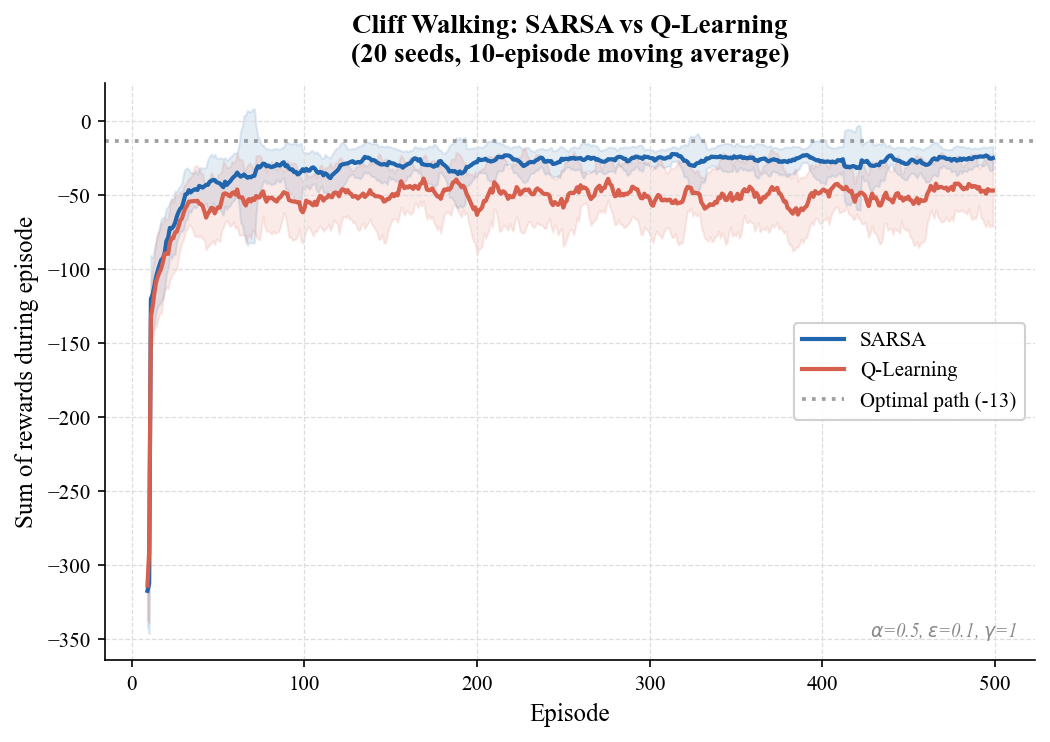

Figure 3 — Cliff Walking：SARSA vs Q-Learning#
\(4\times12\) 悬崖行走：起点左下角，目标右下角，底部中间 10 格是悬崖。普通步 \(-1\)，踩上悬崖 \(-100\) 并回到起点。参数 \(\\alpha=0.5\)、\(\\varepsilon=0.1\)、\(\\gamma=1\)，横轴为局数、纵轴为每局累计奖励（10 局滑动平均）。
SARSA（on-policy） 学习的是 \(\varepsilon\)-贪心策略下的 \(q_\pi\)，会避开“贴着悬崖走”的路线——训练中累计奖励更高；
Q-Learning（off-policy） 学习最优贪心策略，训练时会因随机探索频繁坠崖——累计奖励更低，但最终策略更短。
def run_sarsa(episodes=500, alpha=0.5, gamma=1.0, eps=0.1, seed=0):
"""on-policy：目标用“实际会选”的 A' 的 Q 值（含探索）。"""
env = gym.make('CliffWalking-v0')
if hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
rng = np.random.default_rng(seed)
Q = np.zeros((env.observation_space.n, env.action_space.n))
returns = []
for _ in range(episodes):
s, _ = env.reset()
if rng.random() < eps:
a = int(rng.integers(env.action_space.n))
else:
a = int(np.argmax(Q[s]))
G, episode_done = 0.0, False
while not episode_done:
ns, r, terminated, truncated, _ = env.step(a)
episode_done = terminated or truncated
if terminated:
target = r
a_next = None
else:
if rng.random() < eps:
a_next = int(rng.integers(env.action_space.n))
else:
a_next = int(np.argmax(Q[ns]))
target = r + gamma * Q[ns, a_next]
Q[s, a] += alpha * (target - Q[s, a])
if not episode_done:
s, a = ns, a_next
G += r
returns.append(G)
env.close()
return np.array(returns)
def run_qlearning(episodes=500, alpha=0.5, gamma=1.0, eps=0.1, seed=0):
"""off-policy：目标用 max_a' Q(s', a')，与实际如何探索无关。"""
env = gym.make('CliffWalking-v0')
if hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
rng = np.random.default_rng(seed)
Q = np.zeros((env.observation_space.n, env.action_space.n))
returns = []
for _ in range(episodes):
s, _ = env.reset()
G, episode_done = 0.0, False
while not episode_done:
if rng.random() < eps:
a = int(rng.integers(env.action_space.n))
else:
a = int(np.argmax(Q[s]))
ns, r, terminated, truncated, _ = env.step(a)
episode_done = terminated or truncated
target = r if terminated else r + gamma * np.max(Q[ns])
Q[s, a] += alpha * (target - Q[s, a])
if not episode_done:
s = ns
G += r
returns.append(G)
env.close()
return np.array(returns)
EPISODES, N_SEEDS = 500, 20
W = 10 # 滑动平均窗
print('=== Cliff Walking: SARSA vs Q-Learning ===')
sarsa = np.stack([run_sarsa(EPISODES, seed=s) for s in range(N_SEEDS)])
qlearn = np.stack([run_qlearning(EPISODES, seed=s) for s in range(N_SEEDS)])
print(f'SARSA mean reward/episode (last 50) = {sarsa.mean(axis=0)[-50:].mean():7.2f}')
print(f'Q-Learning mean reward/episode (last 50) = {qlearn.mean(axis=0)[-50:].mean():7.2f}')
def smooth(x, w):
k = np.ones(w) / w
return np.convolve(x, k, mode='valid')
fig, ax = plt.subplots(figsize=(8, 5))
x = np.arange(W - 1, EPISODES)
for data, label, color in [(sarsa, 'SARSA', C_BLUE), (qlearn, 'Q-Learning', C_RED)]:
sm = np.stack([smooth(row, W) for row in data])
mean, std = sm.mean(axis=0), sm.std(axis=0)
ax.plot(x, mean, label=label, color=color)
ax.fill_between(x, mean - std, mean + std, alpha=0.12, color=color)
ax.axhline(-13, color=C_GRAY, linestyle=':', linewidth=1.8, alpha=0.8,
label='Optimal path (-13)')
ax.set_xlabel('Episode')
ax.set_ylabel('Sum of rewards during episode')
ax.set_title('Cliff Walking: SARSA vs Q-Learning\n'
f'({N_SEEDS} seeds, {W}-episode moving average)')
ax.legend()
ax.text(0.98, 0.04, f'$\\alpha$=0.5, $\\varepsilon$=0.1, $\\gamma$=1',
transform=ax.transAxes, ha='right', fontsize=9, color=C_GRAY, style='italic')
fig.savefig(f'{OUTDIR}/fig3_cliff_sarsa_vs_qlearning.pdf', bbox_inches='tight')
plt.show()
print('Saved fig3_cliff_sarsa_vs_qlearning.pdf')
=== Cliff Walking: SARSA vs Q-Learning ===
SARSA mean reward/episode (last 50) = -25.58
Q-Learning mean reward/episode (last 50) = -46.07
Saved fig3_cliff_sarsa_vs_qlearning.pdf
小结#
TD(0) 用“一步真实奖励 + 对下一步的当前估计”更新，无需等 episode 结束；代价是引入有偏估计，换来方差大幅下降和更快收敛；
N 步 TD 是 TD 与 MC 之间的连续谱：\(n\) 越大越依赖真实奖励（低偏差高方差），\(n\) 越小越依赖 bootstrapping（高偏差低方差）；
SARSA（on-policy） 学到 \(\varepsilon\)-贪心策略下的 \(q_\pi\)，保守安全；Q-Learning（off-policy） 学到最优 \(q_*\)，训练时更“冒险”但最终策略更短。
print('All figures saved:')
print(' fig1_random_walk_mc_vs_td.pdf')
print(' fig2_nstep_bias_variance.pdf')
print(' fig3_cliff_sarsa_vs_qlearning.pdf')
All figures saved:
fig1_random_walk_mc_vs_td.pdf
fig2_nstep_bias_variance.pdf
fig3_cliff_sarsa_vs_qlearning.pdf
