DQN 三大创新 — 实验可视化#
生成文章配图，对应 dqn.tex 中 DQN 的三个核心创新：
神经网络逼近 Q 值 — 动机：维度灾难；
经验回放 — 有 / 无对比训练曲线；
目标网络 — 有 / 无对比训练稳定性。
输出图：
fig1_qtable_motivation.pdffig2_replay_comparison.pdffig3_target_comparison.pdf
环境：CartPole-v1 | 预计运行时间：5–10 分钟。
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
import matplotlib as mpl
import matplotlib.pyplot as plt
from collections import deque
import random
# ── Academic style ──────────────────────────────────────────────
mpl.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman', 'DejaVu Serif', 'serif'],
'font.size': 11,
'axes.labelsize': 12,
'axes.titlesize': 13,
'axes.titleweight': 'bold',
'axes.titlepad': 10,
'xtick.labelsize': 10,
'ytick.labelsize': 10,
'legend.fontsize': 10,
'legend.framealpha': 0.9,
'legend.edgecolor': '#CCCCCC',
'figure.dpi': 150,
'axes.spines.top': False,
'axes.spines.right': False,
'axes.grid': True,
'grid.color': '#DDDDDD',
'grid.linestyle': '--',
'grid.linewidth': 0.6,
'lines.linewidth': 2.0,
'savefig.bbox': 'tight',
})
# Color palette
C_BLUE = '#2166AC'
C_RED = '#D6604D'
C_PURPLE = '#762A83'
C_GREEN = '#4DAC26'
C_GRAY = '#888888'
# ── gymnasium / gym compatibility ───────────────────────────────
try:
import gymnasium as gym
def make_env(name, seed=None):
env = gym.make(name)
if seed is not None and hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
return env
def reset_env(env, seed=None):
obs, _ = env.reset(seed=seed); return obs
def step_env(env, action):
obs, r, ter, tru, _ = env.step(action); return obs, r, ter, ter or tru
print('Using gymnasium')
except ImportError:
import gym
def make_env(name, seed=None):
env = gym.make(name)
if seed is not None and hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
return env
def reset_env(env, seed=None):
if seed is not None: env.seed(seed)
return env.reset()
def step_env(env, action):
obs, r, done, _ = env.step(action); return obs, r, done, done
print('Using gym')
print('Setup complete.')
Using gymnasium
Setup complete.

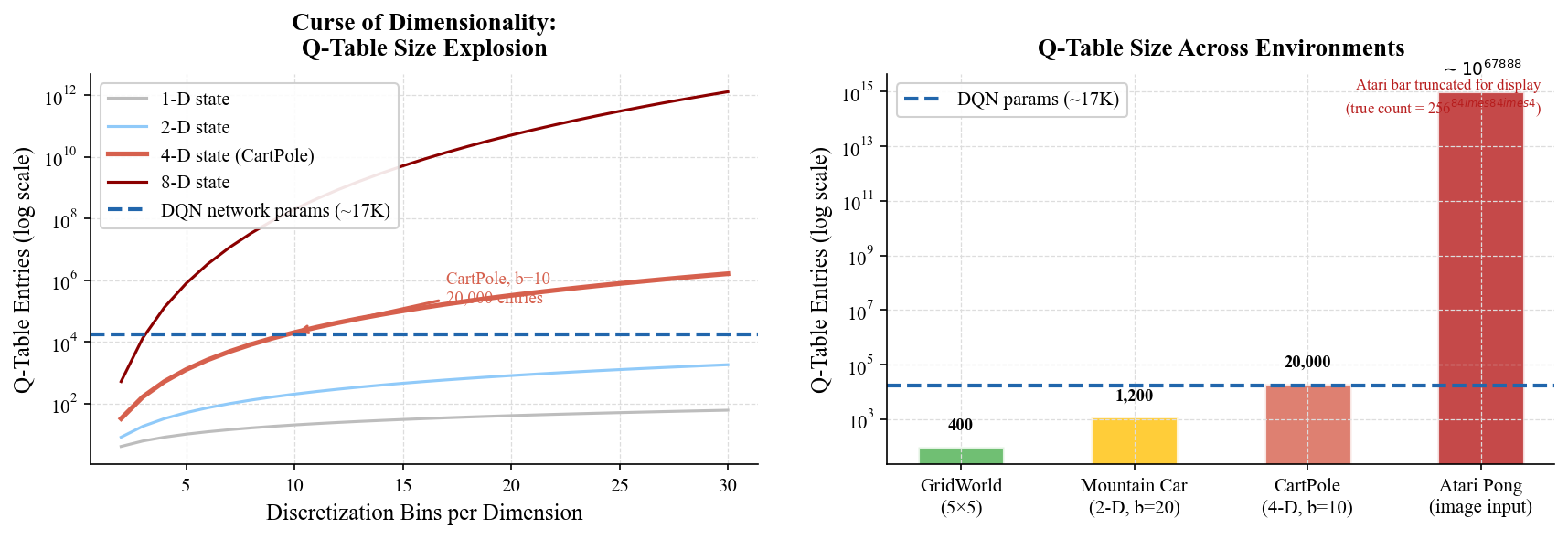

Figure 1 — 维度灾难：为什么需要神经网络#
Q 表大小随状态维度与离散化精度指数爆炸，远超一个小型神经网络的参数量——表格法在连续 / 高维状态空间不可行，函数逼近是必然选择。
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
# ── Left: Q-table size vs. bins, different state dims ───────────
ax = axes[0]
bins = np.arange(2, 31)
n_actions = 2
dims = [1, 2, 4, 8]
dim_colors = ['#BDBDBD', '#90CAF9', C_RED, '#8B0000']
dim_labels = ['1-D state', '2-D state', '4-D state (CartPole)', '8-D state']
for d, color, label in zip(dims, dim_colors, dim_labels):
sizes = (bins ** d) * n_actions
lw = 2.5 if d == 4 else 1.5
ax.semilogy(bins, sizes, color=color, linewidth=lw, label=label)
# Neural network parameter count as reference (4 -> 128 -> 128 -> 2)
nn_params = (4*128 + 128) + (128*128 + 128) + (128*2 + 2) # 17,282
ax.axhline(y=nn_params, color=C_BLUE, linestyle='--', linewidth=2.0,
label=f'DQN network params (~{nn_params//1000}K)')
b10_size = 10**4 * 2 # CartPole, b=10
ax.annotate(
f'CartPole, b=10\n{b10_size:,} entries',
xy=(10, b10_size), xytext=(17, b10_size * 10),
arrowprops=dict(arrowstyle='->', color=C_RED, lw=1.5),
fontsize=9, color=C_RED
)
ax.set_xlabel('Discretization Bins per Dimension')
ax.set_ylabel('Q-Table Entries (log scale)')
ax.set_title('Curse of Dimensionality:\nQ-Table Size Explosion')
ax.legend(loc='upper left')
ax.grid(True, which='both')
# ── Right: Q-table size across environments ──────────────────────
ax2 = axes[1]
env_names = ['GridWorld\n(5×5)', 'Mountain Car\n(2-D, b=20)',
'CartPole\n(4-D, b=10)', 'Atari Pong\n(image input)']
env_sizes = [5*5*4, 20**2*3, 10**4*2, int(1e15)]
env_colors = ['#4CAF50', '#FFC107', C_RED, '#B71C1C']
bars = ax2.bar(env_names, env_sizes, color=env_colors,
alpha=0.80, edgecolor='white', linewidth=1.5, width=0.5)
ax2.set_yscale('log')
ax2.axhline(y=nn_params, color=C_BLUE, linestyle='--', linewidth=2.0,
label=f'DQN params (~{nn_params//1000}K)')
bar_labels = ['400', '1,200', '20,000', r'$\sim 10^{67888}$']
for bar, lbl in zip(bars, bar_labels):
ax2.text(bar.get_x() + bar.get_width() / 2, bar.get_height() * 3,
lbl, ha='center', va='bottom', fontsize=9, fontweight='bold')
ax2.text(0.98, 0.90, 'Atari bar truncated for display\n(true count = 256$^{84\times84\times4}$)',
transform=ax2.transAxes, ha='right', fontsize=8, color='#B71C1C')
ax2.set_ylabel('Q-Table Entries (log scale)')
ax2.set_title('Q-Table Size Across Environments')
ax2.legend()
ax2.grid(True, which='both', axis='y')
plt.tight_layout(pad=2.5)
plt.savefig('fig1_qtable_motivation.pdf')
plt.show()
print('Saved: fig1_qtable_motivation.pdf')
Saved: fig1_qtable_motivation.pdf
DQN 实现（图 2 & 3 共用）#
class QNetwork(nn.Module):
def __init__(self, state_dim, action_dim, hidden=128):
super().__init__()
self.net = nn.Sequential(
nn.Linear(state_dim, hidden), nn.ReLU(),
nn.Linear(hidden, hidden), nn.ReLU(),
nn.Linear(hidden, action_dim)
)
def forward(self, x):
return self.net(x)
class ReplayBuffer:
def __init__(self, capacity):
self.buffer = deque(maxlen=capacity)
def push(self, state, action, reward, next_state, terminated):
self.buffer.append((state, action, reward, next_state, terminated))
def sample(self, batch_size):
batch = random.sample(self.buffer, batch_size)
states, actions, rewards, next_states, terminateds = zip(*batch)
return (
np.array(states, dtype=np.float32),
np.array(actions, dtype=np.int64),
np.array(rewards, dtype=np.float32),
np.array(next_states, dtype=np.float32),
np.array(terminateds, dtype=np.float32),
)
def __len__(self):
return len(self.buffer)
def train_dqn(
n_episodes=400, seed=42,
use_replay=True, use_target=True,
lr=3e-4, gamma=0.99,
buffer_size=10000, batch_size=64, min_buffer=500,
target_update_freq=100,
eps_start=1.0, eps_end=0.01, eps_decay=0.995,
hidden=128
):
torch.manual_seed(seed)
np.random.seed(seed)
random.seed(seed)
env = make_env('CartPole-v1', seed=seed)
state_dim = env.observation_space.shape[0]
action_dim = env.action_space.n
q_net = QNetwork(state_dim, action_dim, hidden)
optimizer = optim.Adam(q_net.parameters(), lr=lr)
if use_target:
target_net = QNetwork(state_dim, action_dim, hidden)
target_net.load_state_dict(q_net.state_dict())
target_net.eval()
else:
target_net = q_net # same object -> target moves every gradient step
# No replay: degenerate to single-step online update
buf_size = buffer_size if use_replay else 1
bsz = batch_size if use_replay else 1
min_buf = min_buffer if use_replay else 1
buffer = ReplayBuffer(buf_size)
epsilon = eps_start
step_count = 0
episode_rewards = []
for ep in range(n_episodes):
state = reset_env(env, seed=seed + ep)
total_reward = 0.0
episode_done = False
while not episode_done:
if random.random() < epsilon:
action = env.action_space.sample()
else:
with torch.no_grad():
s = torch.FloatTensor(state).unsqueeze(0)
action = q_net(s).argmax(dim=1).item()
next_state, reward, terminated, episode_done = step_env(env, action)
buffer.push(state, action, reward, next_state, float(terminated))
state = next_state
total_reward += reward
step_count += 1
if len(buffer) >= min_buf:
s_b, a_b, r_b, ns_b, terminated_b = buffer.sample(bsz)
s_t = torch.FloatTensor(s_b)
a_t = torch.LongTensor(a_b).unsqueeze(1)
r_t = torch.FloatTensor(r_b)
ns_t = torch.FloatTensor(ns_b)
terminated_t = torch.FloatTensor(terminated_b)
curr_q = q_net(s_t).gather(1, a_t).squeeze(1)
with torch.no_grad():
next_q = target_net(ns_t).max(dim=1)[0]
tgt_q = r_t + gamma * next_q * (1 - terminated_t)
loss = nn.MSELoss()(curr_q, tgt_q)
optimizer.zero_grad()
loss.backward()
nn.utils.clip_grad_norm_(q_net.parameters(), 1.0)
optimizer.step()
if use_target and step_count % target_update_freq == 0:
target_net.load_state_dict(q_net.state_dict())
epsilon = max(eps_end, epsilon * eps_decay)
episode_rewards.append(total_reward)
env.close()
return np.array(episode_rewards)
def run_seeds(n_seeds=3, **kwargs):
all_rewards = []
for i in range(n_seeds):
seed = i * 100 + 42
print(f' seed={seed} ...', end='', flush=True)
rewards = train_dqn(seed=seed, **kwargs)
print(f' last-50 avg: {np.mean(rewards[-50:]):.1f}')
all_rewards.append(rewards)
return np.array(all_rewards)
def smooth(arr, window=30):
return np.convolve(arr, np.ones(window) / window, mode='valid')
def plot_comparison(res_a, res_b, label_a, label_b, title, filename,
color_a=C_BLUE, color_b=C_RED, window=30):
fig, ax = plt.subplots(figsize=(8, 4.5))
for res, label, color in [(res_a, label_a, color_a), (res_b, label_b, color_b)]:
smoothed = np.array([smooth(r, window) for r in res])
mean = smoothed.mean(axis=0)
std = smoothed.std(axis=0)
x = np.arange(window - 1, res.shape[1])
ax.plot(x, mean, label=label, color=color, linewidth=2.5)
ax.fill_between(x, mean - std, mean + std, alpha=0.15, color=color)
ax.axhline(y=475, color=C_GREEN, linestyle=':', linewidth=1.8,
alpha=0.8, label='Solved threshold (475, CartPole-v1)')
ax.set_xlabel('Episode')
ax.set_ylabel('Episode Return')
ax.set_title(title)
ax.legend()
ax.set_ylim(0, 550)
ax.text(0.98, 0.04,
f'n = {res_a.shape[0]} seeds, smoothing window = {window}',
transform=ax.transAxes, ha='right', fontsize=8.5, color=C_GRAY,
style='italic')
plt.tight_layout()
plt.savefig(filename)
plt.show()
print(f'Saved: {filename}')
return fig

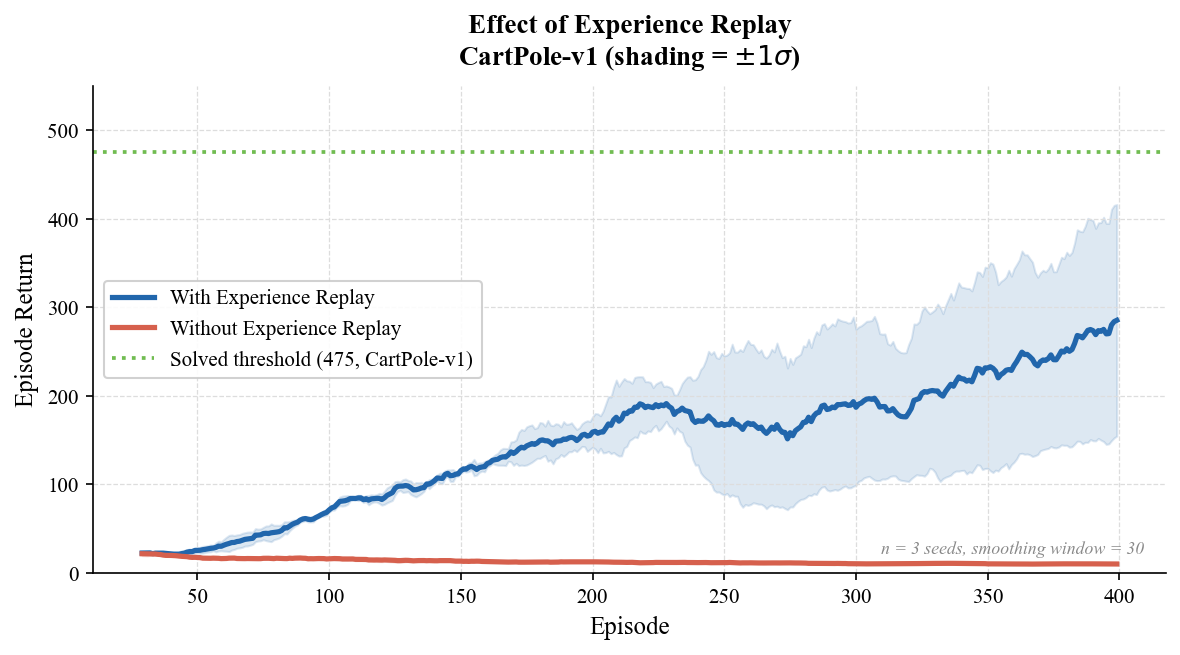

Figure 2 — 经验回放：打破样本相关性#
消融对比（CartPole-v1，3 个随机种子，阴影为 \(\pm 1\sigma\)）：有经验回放的版本收敛更快、方差更小。回放池把时间上相邻、强相关的样本打散成近似独立同分布的小批量，同时反复利用旧经验。
print('=== Experiment 1: Experience Replay ===')
print('\n[A] With replay buffer (capacity=10000, batch=64)')
res_with_replay = run_seeds(n_seeds=3, use_replay=True, use_target=True, n_episodes=400)
print('\n[B] Without replay buffer (online single-step update)')
res_no_replay = run_seeds(n_seeds=3, use_replay=False, use_target=True, n_episodes=400)
=== Experiment 1: Experience Replay ===
[A] With replay buffer (capacity=10000, batch=64)
seed=42 ...
last-50 avg: 331.1
seed=142 ...
last-50 avg: 102.8
seed=242 ...
last-50 avg: 363.5
[B] Without replay buffer (online single-step update)
seed=42 ...
last-50 avg: 10.1
seed=142 ...
last-50 avg: 10.2
seed=242 ...
last-50 avg: 10.6
fig2 = plot_comparison(
res_with_replay, res_no_replay,
label_a='With Experience Replay',
label_b='Without Experience Replay',
title='Effect of Experience Replay\nCartPole-v1 (shading = $\\pm 1\\sigma$)',
filename='fig2_replay_comparison.pdf'
)
Saved: fig2_replay_comparison.pdf

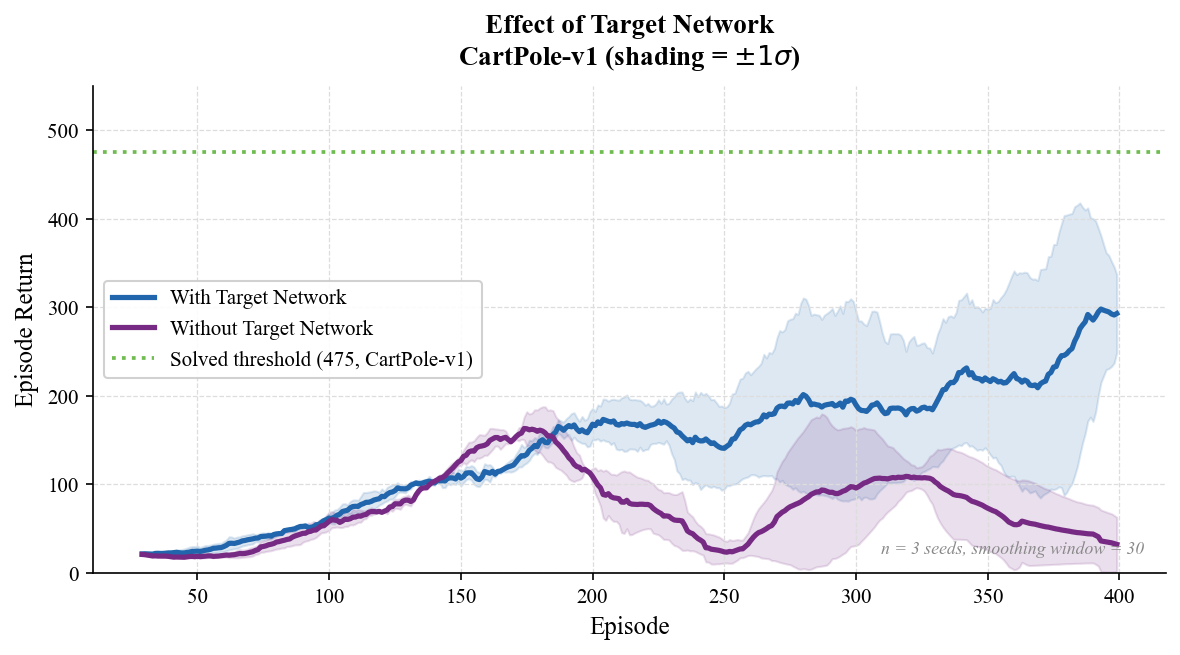

Figure 3 — 目标网络：稳定自举目标#
消融对比（同上设定）：无目标网络时，TD 目标随在线网络每步漂移，「追着自己的尾巴学」，训练曲线更不稳定、种子间方差更高；冻结一段时间的目标网络让回归目标近似固定。
print('=== Experiment 2: Target Network ===')
print('\n[A] With target network (sync every 100 steps)')
res_with_target = run_seeds(n_seeds=3, use_replay=True, use_target=True, n_episodes=400)
print('\n[B] Without target network (q_net used as its own target)')
res_no_target = run_seeds(n_seeds=3, use_replay=True, use_target=False, n_episodes=400)
=== Experiment 2: Target Network ===
[A] With target network (sync every 100 steps)
seed=42 ...
last-50 avg: 217.4
seed=142 ...
last-50 avg: 391.3
seed=242 ...
last-50 avg: 201.2
[B] Without target network (q_net used as its own target)
seed=42 ...
last-50 avg: 88.4
seed=142 ...
last-50 avg: 11.2
seed=242 ...
last-50 avg: 24.2
fig3 = plot_comparison(
res_with_target, res_no_target,
label_a='With Target Network',
label_b='Without Target Network',
title='Effect of Target Network\nCartPole-v1 (shading = $\\pm 1\\sigma$)',
filename='fig3_target_comparison.pdf',
color_a=C_BLUE,
color_b=C_PURPLE
)
Saved: fig3_target_comparison.pdf
print('All figures saved:')
print(' fig1_qtable_motivation.pdf')
print(' fig2_replay_comparison.pdf')
print(' fig3_target_comparison.pdf')
All figures saved:
fig1_qtable_motivation.pdf
fig2_replay_comparison.pdf
fig3_target_comparison.pdf
小结#
函数逼近解决表示问题：Q 表随维度指数爆炸，网络参数量与维度解耦；
经验回放解决数据问题：去相关 + 重复利用旧经验；
目标网络解决优化问题：固定回归目标，避免自举震荡；
三者组合让神经网络 Q-learning 在 CartPole 上稳定下来。后来把 DQN 做到高维输入的，也是这三块。
