Actor-Critic — 朴素 AC 的失败与 A2C 的修复#
在 CartPole-v1 上实现两种 Actor-Critic 变体，验证 ac.tex 中的核心结论：

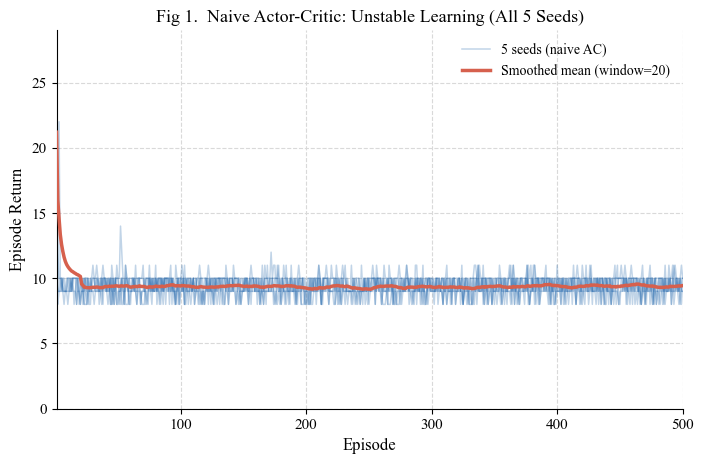

朴素在线 AC 的失败：5 个随机种子全部不稳定，回报钉死在极低水平；

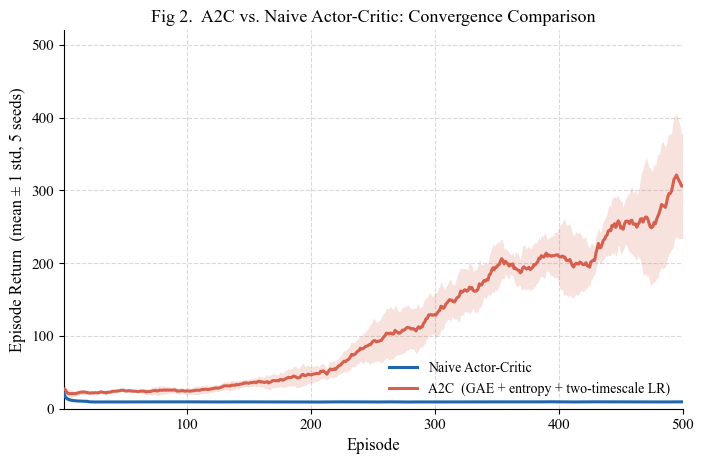

A2C vs 朴素 AC：GAE、双时间尺度学习率、熵正则与梯度裁剪带来的收敛差异（mean ± 1 std）；

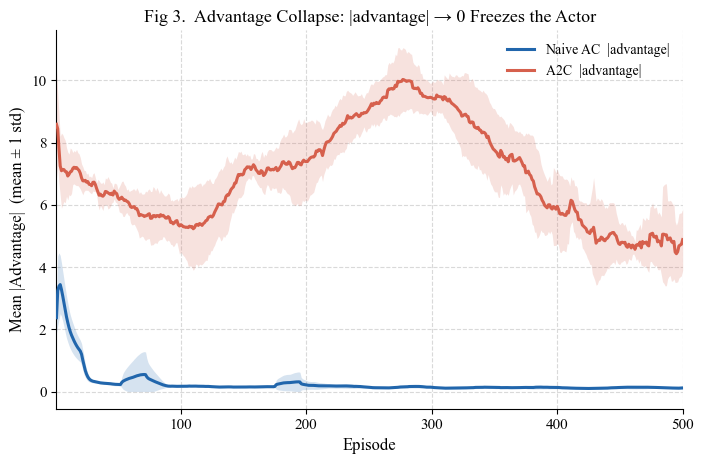

优势塌缩：朴素 Critic 的优势 \(|\hat{A}_t|\) 为何归零并冻结 Actor。
代码同时兼容 gymnasium 与 gym API。
朴素 AC 的问题在哪？#
问题 |
朴素 Actor-Critic |
A2C（修复） |
|---|---|---|
优势估计 |
单步 TD \(\delta\)（高方差） |
GAE（\(\lambda=0.95\)，更低方差） |
学习率 |
Actor 与 Critic 同一学习率 |
Critic 学习率 > Actor（双时间尺度） |
熵正则 |
无 → 过早塌缩 |
熵奖励（系数 0.01） |
梯度裁剪 |
无 → 灾难性更新 |
最大范数 0.5 |
更新粒度 |
在线逐步更新 |
整回合批量更新 |
输出图：
fig1_naive_ac_failure.pdffig2_a2c_vs_naive.pdffig3_advantage_collapse.pdf
from pathlib import Path
import random
import numpy as np
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.distributions import Categorical
try:
import gymnasium as gym
GYM_BACKEND = 'gymnasium'
except ImportError:
import gym
GYM_BACKEND = 'gym'
print(f'Using backend: {GYM_BACKEND}')
print(f'PyTorch version: {torch.__version__}')
Using backend: gymnasium
PyTorch version: 2.9.0+cu126
# -------------------------
# Global configuration
# -------------------------
ENV_NAME = 'CartPole-v1'
SEEDS = [0, 1, 2, 3, 4]
NUM_EPISODES = 500
GAMMA = 0.99
GAE_LAMBDA = 0.95
HIDDEN_DIM = 128
SMOOTH_WINDOW = 20
# Naive AC: one learning rate for everything (the bug)
NAIVE_LR = 5e-3
# A2C: two-timescale learning rates
ACTOR_LR = 3e-4
CRITIC_LR = 1e-3 # higher than actor — critic must converge first
ENTROPY_COEFF = 0.01
GRAD_CLIP = 0.5
DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
FIG_DIR = Path('.') # figures saved alongside the notebook
BLUE = '#2166AC'
RED = '#D6604D'
GREEN = '#4DAC26'
GRAY = '#808080'
plt.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman', 'Times', 'DejaVu Serif'],
'font.size': 12,
'axes.labelsize': 12,
'axes.titlesize': 13,
'legend.fontsize': 10,
'xtick.labelsize': 11,
'ytick.labelsize': 11,
'pdf.fonttype': 42,
'ps.fonttype': 42,
})
print(f'Device: {DEVICE}')
Device: cuda
# -------------------------
# Utility functions
# -------------------------
def set_seed(seed: int):
random.seed(seed)
np.random.seed(seed)
torch.manual_seed(seed)
if torch.cuda.is_available():
torch.cuda.manual_seed_all(seed)
def reset_env(env, seed=None):
if seed is not None:
try:
out = env.reset(seed=seed)
except TypeError:
if hasattr(env, 'seed'):
env.seed(seed)
out = env.reset()
else:
out = env.reset()
state = out[0] if isinstance(out, tuple) else out
return np.asarray(state, dtype=np.float32)
def step_env(env, action):
out = env.step(action)
if len(out) == 5:
next_state, reward, terminated, truncated, info = out
episode_done = terminated or truncated
else:
next_state, reward, done, info = out
terminated = done
episode_done = done
return np.asarray(next_state, dtype=np.float32), float(reward), bool(terminated), bool(episode_done), info
def moving_average(x, window=20):
x = np.asarray(x, dtype=np.float64)
out = np.empty_like(x)
for i in range(len(x)):
start = max(0, i - window + 1)
out[i] = x[start:i + 1].mean()
return out
def style_axes(ax):
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(True, linestyle='--', linewidth=0.8, color='0.85')
ax.set_axisbelow(True)
# -------------------------
# Networks
# Both methods use the exact same architecture.
# The difference is entirely in how they are trained.
# -------------------------
class PolicyNetwork(nn.Module):
def __init__(self, state_dim, action_dim, hidden_dim=128):
super().__init__()
self.net = nn.Sequential(
nn.Linear(state_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, action_dim),
)
def forward(self, x):
return Categorical(logits=self.net(x))
class ValueNetwork(nn.Module):
def __init__(self, state_dim, hidden_dim=128):
super().__init__()
self.net = nn.Sequential(
nn.Linear(state_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, hidden_dim), nn.ReLU(),
nn.Linear(hidden_dim, 1),
)
def forward(self, x):
return self.net(x).squeeze(-1)
# -------------------------
# Generalized Advantage Estimation (Schulman et al., 2015)
# -------------------------
def compute_gae(rewards, values, next_value, terminateds, episode_ends, gamma, gae_lambda):
"""
GAE: A_t = sum_l (gamma*lambda)^l * delta_{t+l}
where delta_t = r_t + gamma*V(s_{t+1}) - V(s_t).
Lower lambda -> higher bias, lower variance (closer to one-step TD).
Higher lambda -> lower bias, higher variance (closer to Monte Carlo).
lambda=0.95 is a good default that balances both.
"""
n = len(rewards)
values_arr = np.array(values, dtype=np.float32)
advantages = np.zeros(n, dtype=np.float32)
gae = 0.0
for t in reversed(range(n)):
v_next = 0.0 if terminateds[t] else (values_arr[t + 1] if t < n - 1 else next_value)
delta = rewards[t] + gamma * v_next - values_arr[t]
gae = delta + gamma * gae_lambda * (0.0 if episode_ends[t] else gae)
advantages[t] = gae
returns = advantages + values_arr
return advantages, returns
# -------------------------
# Naive Online Actor-Critic
# -------------------------
def train_naive_ac(env_name, seed, num_episodes, gamma, lr, hidden_dim):
"""
Four failure modes baked in:
Fault 1 — Per-step TD(0) advantage: high-variance gradient signal.
Each update sees only (r + gamma*V(s') - V(s)), which is noisy.
Fault 2 — Same LR for actor & critic: two-timescale condition violated.
Theory (Konda & Tsitsiklis, 2003) requires critic to converge
faster than actor; identical LRs break this.
Fault 3 — No entropy bonus: policy collapses to a deterministic action
before it has explored enough.
Fault 4 — No gradient clipping: a single bad step can blow up parameters.
"""
set_seed(seed)
env = gym.make(env_name)
if hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
state_dim = env.observation_space.shape[0]
action_dim = env.action_space.n
policy = PolicyNetwork(state_dim, action_dim, hidden_dim).to(DEVICE)
value = ValueNetwork(state_dim, hidden_dim).to(DEVICE)
actor_optim = torch.optim.Adam(policy.parameters(), lr=lr)
critic_optim = torch.optim.Adam(value.parameters(), lr=lr) # Fault 2: same LR
episode_returns = []
critic_loss_hist = []
advantage_hist = []
for ep in range(num_episodes):
state = reset_env(env, seed=seed if ep == 0 else None)
episode_done = False
ep_reward = 0.0
ep_c_losses = []
ep_advantages = []
while not episode_done:
state_t = torch.tensor(state, dtype=torch.float32, device=DEVICE).unsqueeze(0)
dist = policy(state_t)
action = dist.sample()
log_prob = dist.log_prob(action).squeeze() # Fault 3: no entropy term
next_state, reward, terminated, episode_done, _ = step_env(env, action.item())
next_t = torch.tensor(next_state, dtype=torch.float32, device=DEVICE).unsqueeze(0)
# Fault 1: one-step TD advantage (high variance)
with torch.no_grad():
v_next = 0.0 if terminated else value(next_t).item()
v_curr = value(state_t).squeeze()
td_target = torch.tensor(reward + gamma * v_next,
dtype=torch.float32, device=DEVICE)
advantage = td_target - v_curr
# Critic update — Fault 4: no gradient clipping
c_loss = advantage.pow(2)
critic_optim.zero_grad()
c_loss.backward()
critic_optim.step()
ep_c_losses.append(c_loss.item())
ep_advantages.append(abs(advantage.item()))
# Actor update — Fault 4: no gradient clipping
a_loss = -log_prob * advantage.detach()
actor_optim.zero_grad()
a_loss.backward()
actor_optim.step()
state = next_state
ep_reward += reward
episode_returns.append(ep_reward)
critic_loss_hist.append(float(np.mean(ep_c_losses)) if ep_c_losses else 0.0)
advantage_hist.append(float(np.mean(ep_advantages)) if ep_advantages else 0.0)
env.close()
return {
'returns': np.array(episode_returns, dtype=np.float32),
'critic_losses': np.array(critic_loss_hist, dtype=np.float32),
'advantages': np.array(advantage_hist, dtype=np.float32),
}
# -------------------------
# Advantage Actor-Critic (A2C)
# -------------------------
def train_a2c(env_name, seed, num_episodes, gamma, gae_lambda,
actor_lr, critic_lr, entropy_coeff, grad_clip, hidden_dim):
"""
Each fault fixed:
Fix 1 — Full-episode rollout + GAE (lambda=0.95): much lower-variance advantages.
Fix 2 — critic_lr > actor_lr: critic converges faster, giving stable baselines
before the actor makes large updates (two-timescale principle).
Fix 3 — Entropy bonus: prevents premature policy collapse.
Fix 4 — Gradient clipping: bounds the size of each parameter update.
"""
set_seed(seed)
env = gym.make(env_name)
if hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
state_dim = env.observation_space.shape[0]
action_dim = env.action_space.n
policy = PolicyNetwork(state_dim, action_dim, hidden_dim).to(DEVICE)
value = ValueNetwork(state_dim, hidden_dim).to(DEVICE)
actor_optim = torch.optim.Adam(policy.parameters(), lr=actor_lr)
critic_optim = torch.optim.Adam(value.parameters(), lr=critic_lr) # Fix 2
episode_returns = []
critic_loss_hist = []
advantage_hist = []
for ep in range(num_episodes):
state = reset_env(env, seed=seed if ep == 0 else None)
episode_done = False
ep_states = []
ep_actions = []
ep_rewards = []
ep_values = []
ep_terminateds = []
ep_episode_ends = []
# ── Rollout phase (no gradients) ─────────────────────
with torch.no_grad():
while not episode_done:
state_t = torch.tensor(state, dtype=torch.float32, device=DEVICE).unsqueeze(0)
dist = policy(state_t)
v = value(state_t).item()
action = dist.sample()
next_state, reward, terminated, episode_done, _ = step_env(env, action.item())
ep_states.append(state)
ep_actions.append(action.item())
ep_rewards.append(reward)
ep_values.append(v)
ep_terminateds.append(terminated)
ep_episode_ends.append(episode_done)
state = next_state
last_t = torch.tensor(state, dtype=torch.float32, device=DEVICE).unsqueeze(0)
last_v = 0.0 if ep_terminateds[-1] else value(last_t).item()
# ── GAE advantage estimation (Fix 1) ─────────────────
advantages, returns = compute_gae(
ep_rewards, ep_values, last_v, ep_terminateds, ep_episode_ends, gamma, gae_lambda
)
ep_mean_adv = float(np.mean(np.abs(advantages)))
advantages = (advantages - advantages.mean()) / (advantages.std() + 1e-8)
states_t = torch.tensor(np.array(ep_states), dtype=torch.float32, device=DEVICE)
actions_t = torch.tensor(ep_actions, dtype=torch.long, device=DEVICE)
adv_t = torch.tensor(advantages, dtype=torch.float32, device=DEVICE)
ret_t = torch.tensor(returns, dtype=torch.float32, device=DEVICE)
# ── Critic update (higher LR — converges first) ──────
values_pred = value(states_t)
c_loss = F.mse_loss(values_pred, ret_t)
critic_optim.zero_grad()
c_loss.backward()
torch.nn.utils.clip_grad_norm_(value.parameters(), grad_clip) # Fix 4
critic_optim.step()
# ── Actor update (lower LR + entropy bonus) ───────────
dist_new = policy(states_t)
log_probs = dist_new.log_prob(actions_t)
entropy = dist_new.entropy().mean()
a_loss = -(log_probs * adv_t).mean() - entropy_coeff * entropy # Fix 3
actor_optim.zero_grad()
a_loss.backward()
torch.nn.utils.clip_grad_norm_(policy.parameters(), grad_clip) # Fix 4
actor_optim.step()
episode_returns.append(sum(ep_rewards))
critic_loss_hist.append(c_loss.item())
advantage_hist.append(ep_mean_adv)
env.close()
return {
'returns': np.array(episode_returns, dtype=np.float32),
'critic_losses': np.array(critic_loss_hist, dtype=np.float32),
'advantages': np.array(advantage_hist, dtype=np.float32),
}
# -------------------------
# Multi-seed runner
# -------------------------
def run_multi_seed(train_fn, label, **kwargs):
all_returns, all_c_losses, all_advantages = [], [], []
print(f'Running: {label}')
for seed in SEEDS:
result = train_fn(env_name=ENV_NAME, seed=seed,
num_episodes=NUM_EPISODES, **kwargs)
all_returns.append(result['returns'])
all_c_losses.append(result['critic_losses'])
all_advantages.append(result['advantages'])
print(f' Seed {seed:>2d} | Final-20 mean: {result["returns"][-20:].mean():.2f}')
return {
'returns': np.stack(all_returns, axis=0),
'critic_losses': np.stack(all_c_losses, axis=0),
'advantages': np.stack(all_advantages, axis=0),
}
naive_results = run_multi_seed(
train_naive_ac, 'Naive Actor-Critic',
gamma=GAMMA, lr=NAIVE_LR, hidden_dim=HIDDEN_DIM,
)
a2c_results = run_multi_seed(
train_a2c, 'A2C',
gamma=GAMMA, gae_lambda=GAE_LAMBDA,
actor_lr=ACTOR_LR, critic_lr=CRITIC_LR,
entropy_coeff=ENTROPY_COEFF, grad_clip=GRAD_CLIP,
hidden_dim=HIDDEN_DIM,
)
Running: Naive Actor-Critic
Seed 0 | Final-20 mean: 9.60
Seed 1 | Final-20 mean: 9.35
Seed 2 | Final-20 mean: 9.45
Seed 3 | Final-20 mean: 9.65
Seed 4 | Final-20 mean: 9.15
Running: A2C
Seed 0 | Final-20 mean: 215.85
Seed 1 | Final-20 mean: 341.75
Seed 2 | Final-20 mean: 392.10
Seed 3 | Final-20 mean: 355.90
Seed 4 | Final-20 mean: 225.45
# -------------------------
# Plotting helper
# -------------------------
def plot_mean_std(ax, data, color, label, window=20, clip_lower=None, clip_upper=None):
smoothed = np.vstack([moving_average(run, window) for run in data])
mean = smoothed.mean(axis=0)
std = smoothed.std(axis=0)
x = np.arange(1, len(mean) + 1)
lo = mean - std
hi = mean + std
if clip_lower is not None:
lo = np.maximum(lo, clip_lower)
if clip_upper is not None:
hi = np.minimum(hi, clip_upper)
ax.plot(x, mean, color=color, linewidth=2.2, label=label, zorder=3)
ax.fill_between(x, lo, hi, color=color, alpha=0.18, linewidth=0, zorder=2)
return mean, std
Figure 1 — 朴素 Actor-Critic：5 个种子全部失败#
朴素在线 AC（\(\alpha=5\times10^{-3}\)，无熵正则，无梯度裁剪）在 CartPole-v1 上的 5 个随机种子：episode return 全程钉死在 \(\approx 9\)（满分 500）。单步 TD \(\delta\) 的高方差加上 Actor 与 Critic 同步同速更新，让策略在起步阶段就被错误信号锁死。
# -------------------------
# Fig 1 — Naive Actor-Critic: All 5 Seeds Fail
# -------------------------
fig, ax = plt.subplots(figsize=(7.2, 4.8))
episodes = np.arange(1, NUM_EPISODES + 1)
raw = naive_results['returns']
for idx in range(len(SEEDS)):
ax.plot(episodes, raw[idx],
color=BLUE, alpha=0.28, linewidth=1.1,
label='5 seeds (naive AC)' if idx == 0 else None,
zorder=1)
smoothed_mean = moving_average(raw.mean(axis=0), window=SMOOTH_WINDOW)
ax.plot(episodes, smoothed_mean,
color=RED, linewidth=2.5,
label=f'Smoothed mean (window={SMOOTH_WINDOW})',
zorder=3)
style_axes(ax)
ax.set_title('Fig 1. Naive Actor-Critic: Unstable Learning (All 5 Seeds)')
ax.set_xlabel('Episode')
ax.set_ylabel('Episode Return')
ax.set_xlim(1, NUM_EPISODES)
ax.set_ylim(bottom=0)
ax.legend(frameon=False, loc='upper right')
fig.tight_layout()
fig1_path = FIG_DIR / 'fig1_naive_ac_failure.pdf'
fig.savefig(fig1_path, format='pdf', bbox_inches='tight')
plt.show()
print(f'Saved: {fig1_path}')
Saved: BreakRL\notes\actor-critic\fig1_naive_ac_failure.pdf
Figure 2 — A2C vs 朴素 AC：收敛对比#
相同网络结构、仅训练方式不同（5 seeds，mean ± 1 std）：A2C 依靠 GAE（\(\lambda=0.95\)）降方差、Critic 快于 Actor 的双时间尺度学习率、熵正则与梯度裁剪，稳定收敛；朴素 AC 停留在起步水平。
# -------------------------
# Fig 2 — A2C vs. Naive AC: Convergence Comparison
# -------------------------
fig, ax = plt.subplots(figsize=(7.2, 4.8))
plot_mean_std(ax, naive_results['returns'],
BLUE, 'Naive Actor-Critic',
window=SMOOTH_WINDOW, clip_lower=0, clip_upper=500)
plot_mean_std(ax, a2c_results['returns'],
RED, 'A2C (GAE + entropy + two-timescale LR)',
window=SMOOTH_WINDOW, clip_lower=0, clip_upper=500)
style_axes(ax)
ax.set_title('Fig 2. A2C vs. Naive Actor-Critic: Convergence Comparison')
ax.set_xlabel('Episode')
ax.set_ylabel('Episode Return (mean \u00b1 1 std, 5 seeds)')
ax.set_xlim(1, NUM_EPISODES)
ax.set_ylim(0, 520)
ax.legend(frameon=False, loc='lower right')
fig.tight_layout()
fig2_path = FIG_DIR / 'fig2_a2c_vs_naive.pdf'
fig.savefig(fig2_path, format='pdf', bbox_inches='tight')
plt.show()
print(f'Saved: {fig2_path}')
Saved: BreakRL\notes\actor-critic\fig2_a2c_vs_naive.pdf
Figure 3 — 优势塌缩：Actor 为何冻结#
当优势 \(\to 0\) 时策略梯度消失，Actor 冻结。蓝色（朴素 AC）的每回合均值 \(|\hat{A}_t|\) 在前 50 回合内归零——Critic 迅速「自洽」却没学到有用价值；红色（A2C）维持非零信号，钟形轮廓反映 Critic 与 Actor 之间持续的「追赶」动态。
# -------------------------
# Fig 3 — Mean |Advantage| per Episode
# When advantage → 0 the policy gradient vanishes and the actor freezes.
# Naive AC: advantage collapses to ~0 within 50 episodes (actor frozen).
# A2C: advantage stays large and grows with the policy — ongoing learning.
# -------------------------
fig, ax = plt.subplots(figsize=(7.2, 4.8))
plot_mean_std(ax, naive_results['advantages'],
BLUE, 'Naive AC |advantage|',
window=SMOOTH_WINDOW, clip_lower=0)
plot_mean_std(ax, a2c_results['advantages'],
RED, 'A2C |advantage|',
window=SMOOTH_WINDOW, clip_lower=0)
style_axes(ax)
ax.set_title('Fig 3. Advantage Collapse: |advantage| → 0 Freezes the Actor')
ax.set_xlabel('Episode')
ax.set_ylabel('Mean |Advantage| (mean ± 1 std)')
ax.set_xlim(1, NUM_EPISODES)
ax.legend(frameon=False, loc='upper right')
fig.tight_layout()
fig3_path = FIG_DIR / 'fig3_advantage_collapse.pdf'
fig.savefig(fig3_path, format='pdf', bbox_inches='tight')
plt.show()
print(f'Saved: {fig3_path}')
Saved: BreakRL\notes\actor-critic\fig3_advantage_collapse.pdf
小结#
朴素在线 AC 用单步 TD \(\delta\) 做优势、Actor 与 Critic 同速在线更新：方差大且信号迅速归零，5 个种子全部失败；
A2C 的修复是组合拳：GAE 降方差、双时间尺度让 Critic 先于 Actor 变准、熵正则维持探索、梯度裁剪防灾难步、整回合批量更新；
读图要点：Figure 3 的优势幅度是诊断信号——优势归零意味着梯度消失，策略不再更新。
# -------------------------
# Summary
# -------------------------
def print_summary(name, results):
r = results['returns'][:, -20:].mean(axis=1)
print(f'{name:<45s} Final-20: {r.mean():.2f} \u00b1 {r.std():.2f}')
print_summary('Naive Actor-Critic', naive_results)
print_summary('A2C (GAE + entropy + two-timescale LR)', a2c_results)
print('\nFigures saved:')
for p in [fig1_path, fig2_path, fig3_path]:
print(f' {p}')
Naive Actor-Critic Final-20: 9.44 ± 0.18
A2C (GAE + entropy + two-timescale LR) Final-20: 306.21 ± 71.83
Figures saved:
BreakRL\notes\actor-critic\fig1_naive_ac_failure.pdf
BreakRL\notes\actor-critic\fig2_a2c_vs_naive.pdf
BreakRL\notes\actor-critic\fig3_advantage_collapse.pdf
