PPO — Clip 与 No-Clip 对比实验#
在 LunarLander-v3 上用 mini-batch 更新对比有 / 无 clip 的 PPO，验证 ppo.tex 中的核心结论：
No-Clip 的不稳定：去掉 clip 后同一批数据复用 \(K=20\) 轮，部分种子回报跌至 \(-8000\)；
Clip vs No-Clip：横轴用环境步数（两方法总步数完全相同），排除 episode 长短的混淆；
策略比值 \(r_t\)：clip 如何把比值约束在 1 附近。
输出图：
fig1_noclip_instability.pdffig2_clip_vs_noclip.pdffig3_policy_ratio.pdf
预计运行时间：约 30–60 分钟（CPU，5 seeds × 2 组）。
try:
import gymnasium as gym
_GYM_MAKE = gym.make
except ImportError:
import gym
_GYM_MAKE = gym.make
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.distributions import Categorical
import matplotlib
import matplotlib.pyplot as plt
matplotlib.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman'],
'pdf.fonttype': 42,
'ps.fonttype': 42,
'axes.labelsize': 11,
'xtick.labelsize': 9,
'ytick.labelsize': 9,
'legend.fontsize': 9,
})
BLUE = '#2166AC'
RED = '#D6604D'
GRAY = '#808080'
FIGSIZE = (7.2, 4.8)
OUTDIR = '.'
# ── Hyperparameters ──────────────────────────────────────────────────────────
ENV_ID = 'LunarLander-v3'
N_SEEDS = 5
N_ROLLOUTS = 300
ROLLOUT_STEPS = 2048
K_EPOCHS = 20
BATCH_SIZE = 64
GAMMA = 0.99
GAE_LAMBDA = 0.95
LR = 3e-4
CLIP_EPS = 0.2
ENT_COEF = 0.01
VF_COEF = 0.5
MAX_GRAD_NORM = 0.5
HIDDEN_SIZE = 64
SMOOTH_WIN = 20
SEED_BASE = 42
TOTAL_STEPS = N_ROLLOUTS * ROLLOUT_STEPS # 614 400
STEP_GRID = np.linspace(0, TOTAL_STEPS, 500) # common x-axis for Fig 2
def style_axes(ax):
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(True, linestyle='--', linewidth=0.5, alpha=0.7)
def smooth(x, w):
x = np.array(x, dtype=float)
if len(x) < w:
return x
return np.convolve(x, np.ones(w) / w, mode='valid')
def plot_mean_std(ax, data, color, label, smooth_win=1):
"""Episode-indexed mean ± std (for Fig 1)."""
if smooth_win > 1:
data = [smooth(row, smooth_win) for row in data]
min_len = min(len(r) for r in data)
arr = np.array([r[:min_len] for r in data])
mu, std = arr.mean(0), arr.std(0)
ax.plot(mu, color=color, linewidth=1.5, label=label)
ax.fill_between(np.arange(min_len), mu - std, mu + std, color=color, alpha=0.15)
def plot_mean_std_steps(ax, ep_steps_list, ep_returns_list, color, label, smooth_win=1):
"""Step-indexed mean ± std on STEP_GRID (for Fig 2)."""
curves = []
for ep_steps, ep_returns in zip(ep_steps_list, ep_returns_list):
s = np.array(ep_steps, dtype=float)
r = np.array(ep_returns, dtype=float)
if smooth_win > 1 and len(r) >= smooth_win:
r = smooth(r, smooth_win)
s = s[smooth_win - 1:] # align: smooth output index i → episode i+w-1
# Forward-fill onto the common step grid
curve = np.interp(STEP_GRID, s, r, left=r[0])
curves.append(curve)
arr = np.array(curves)
mu, std = arr.mean(0), arr.std(0)
xs = STEP_GRID / 1e3 # display in thousands
ax.plot(xs, mu, color=color, linewidth=1.5, label=label)
ax.fill_between(xs, mu - std, mu + std, color=color, alpha=0.15)
class ActorCritic(nn.Module):
def __init__(self, obs_dim, n_actions, hidden=HIDDEN_SIZE):
super().__init__()
self.shared = nn.Sequential(
nn.Linear(obs_dim, hidden), nn.Tanh(),
nn.Linear(hidden, hidden), nn.Tanh(),
)
self.actor = nn.Linear(hidden, n_actions)
self.critic = nn.Linear(hidden, 1)
def forward(self, x):
h = self.shared(x)
return self.actor(h), self.critic(h).squeeze(-1)
def act(self, obs):
logits, value = self(obs)
dist = Categorical(logits=logits)
a = dist.sample()
return a, dist.log_prob(a), value
def evaluate(self, obs, actions):
logits, values = self(obs)
dist = Categorical(logits=logits)
return dist.log_prob(actions), values, dist.entropy()
def compute_gae(rewards, values, next_values, terminateds, episode_ends, gamma=GAMMA, lam=GAE_LAMBDA):
advantages, gae = [], 0.0
for r, v, nv, terminated, episode_end in zip(
reversed(rewards), reversed(values), reversed(next_values),
reversed(terminateds), reversed(episode_ends)
):
delta = r + gamma * nv * (1 - terminated) - v
gae = delta + gamma * lam * (1 - episode_end) * gae
advantages.insert(0, gae)
returns = [a + v for a, v in zip(advantages, values)]
return advantages, returns
def collect_rollout(env, policy, device, step_offset):
"""step_offset: total env steps completed before this rollout."""
bufs = {k: [] for k in ('obs', 'act', 'logp', 'val', 'rew', 'next_val', 'terminated', 'episode_end')}
obs, _ = env.reset()
ep_returns, ep_step_ends = [], [] # ep_step_ends: global step when episode finished
ep_ret = 0.0
for local_step in range(ROLLOUT_STEPS):
obs_t = torch.FloatTensor(obs).to(device)
with torch.no_grad():
a, logp, val = policy.act(obs_t)
next_obs, rew, term, trunc, _ = env.step(a.item())
episode_end = term or trunc
with torch.no_grad():
_, next_val = policy(torch.FloatTensor(next_obs).to(device))
bufs['obs'].append(obs); bufs['act'].append(a.item())
bufs['logp'].append(logp.item()); bufs['val'].append(val.item())
bufs['rew'].append(rew); bufs['next_val'].append(next_val.item())
bufs['terminated'].append(float(term)); bufs['episode_end'].append(float(episode_end))
ep_ret += rew
if episode_end:
ep_returns.append(ep_ret)
ep_step_ends.append(step_offset + local_step + 1) # 1-indexed global step
ep_ret = 0.0
obs, _ = env.reset()
else:
obs = next_obs
return bufs, ep_returns, ep_step_ends
def update_policy(policy, optimizer, bufs, device, use_clip):
advs, rets = compute_gae(
bufs['rew'], bufs['val'], bufs['next_val'],
bufs['terminated'], bufs['episode_end']
)
advs = np.array(advs, dtype=np.float32)
advs = (advs - advs.mean()) / (advs.std() + 1e-8)
N = len(bufs['obs'])
obs_t = torch.FloatTensor(bufs['obs']).to(device)
act_t = torch.LongTensor(bufs['act']).to(device)
ret_t = torch.FloatTensor(rets).to(device)
adv_t = torch.FloatTensor(advs).to(device)
logp_old = torch.FloatTensor(bufs['logp']).to(device)
epoch_ratios = []
for _ in range(K_EPOCHS):
with torch.no_grad():
logp_now, _, _ = policy.evaluate(obs_t, act_t)
epoch_ratios.append(torch.exp(logp_now - logp_old).mean().item())
perm = torch.randperm(N, device=device)
for start in range(0, N, BATCH_SIZE):
idx = perm[start:start + BATCH_SIZE]
logp, vals, ent = policy.evaluate(obs_t[idx], act_t[idx])
ratio = torch.exp(logp - logp_old[idx])
if use_clip:
s1 = ratio * adv_t[idx]
s2 = torch.clamp(ratio, 1 - CLIP_EPS, 1 + CLIP_EPS) * adv_t[idx]
actor_loss = -torch.min(s1, s2).mean()
else:
actor_loss = -(ratio * adv_t[idx]).mean()
loss = actor_loss + VF_COEF * (ret_t[idx] - vals).pow(2).mean() - ENT_COEF * ent.mean()
optimizer.zero_grad()
loss.backward()
nn.utils.clip_grad_norm_(policy.parameters(), MAX_GRAD_NORM)
optimizer.step()
return epoch_ratios
def run_experiment(seed, use_clip):
torch.manual_seed(seed)
np.random.seed(seed)
device = torch.device('cpu')
env = _GYM_MAKE(ENV_ID)
if hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
policy = ActorCritic(env.observation_space.shape[0], env.action_space.n).to(device)
optimizer = optim.Adam(policy.parameters(), lr=LR)
all_ep_returns, all_ep_steps, all_ratios = [], [], []
total_steps = 0
for _ in range(N_ROLLOUTS):
bufs, ep_returns, ep_step_ends = collect_rollout(
env, policy, device, total_steps
)
ratios = update_policy(policy, optimizer, bufs, device, use_clip)
all_ep_returns.extend(ep_returns)
all_ep_steps.extend(ep_step_ends)
all_ratios.extend(ratios)
total_steps += ROLLOUT_STEPS
env.close()
return all_ep_returns, all_ep_steps, all_ratios
print('Running LunarLander-v3 experiments — est. 30–60 min ...')
noclip_returns, noclip_ep_steps, noclip_ratios = [], [], []
clip_returns, clip_ep_steps, clip_ratios = [], [], []
for s in range(N_SEEDS):
seed = SEED_BASE + s
print(f' seed {seed}: no-clip ...', end=' ', flush=True)
r, st, rat = run_experiment(seed, use_clip=False)
noclip_returns.append(r); noclip_ep_steps.append(st); noclip_ratios.append(rat)
print('clip ...', end=' ', flush=True)
r, st, rat = run_experiment(seed, use_clip=True)
clip_returns.append(r); clip_ep_steps.append(st); clip_ratios.append(rat)
print('done')
print('All done.')
Running LunarLander-v3 experiments — est. 30–60 min ...
seed 42: no-clip ... clip ... done
seed 43: no-clip ... clip ... done
seed 44: no-clip ... clip ... done
seed 45: no-clip ... clip ... done
seed 46: no-clip ... clip ... done
All done.

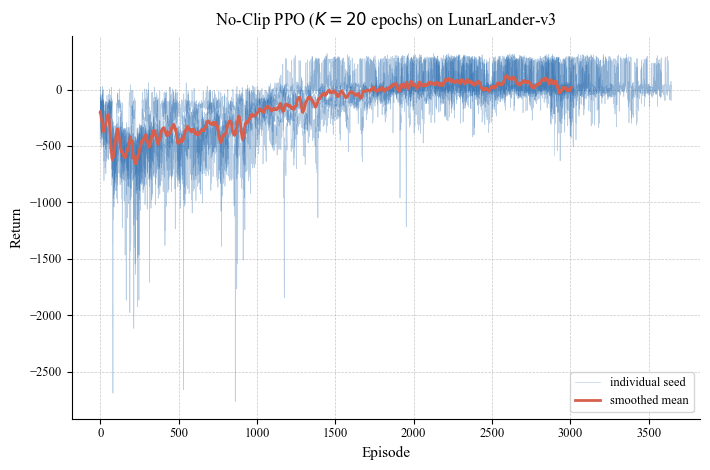

Figure 1 — No-Clip PPO：原始种子与平滑均值#
无 clip 时同一批数据被复用 \(K=20\) 轮，策略可以离旧策略任意远：部分 seed 早期回报跌至 \(-8000\)（比随机策略差 40 倍），之后缓慢恢复；平滑均值（红色）全程低于有 clip 的版本（横轴为 episode）。
# ── Fig 1: No-Clip PPO — raw seeds + smoothed mean (x = episode) ────────────
fig, ax = plt.subplots(figsize=FIGSIZE)
for i, ret in enumerate(noclip_returns):
ax.plot(ret, color=BLUE, linewidth=0.5, alpha=0.3,
label='individual seed' if i == 0 else None)
min_len = min(len(r) for r in noclip_returns)
mat = np.array([r[:min_len] for r in noclip_returns])
ax.plot(smooth(mat.mean(0), SMOOTH_WIN), color=RED, linewidth=2.0, label='smoothed mean')
style_axes(ax)
ax.set_xlabel('Episode')
ax.set_ylabel('Return')
ax.set_title('No-Clip PPO ($K=20$ epochs) on LunarLander-v3', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig1_noclip_instability.pdf', bbox_inches='tight')
plt.show()
print('Saved fig1_noclip_instability.pdf')
Saved fig1_noclip_instability.pdf

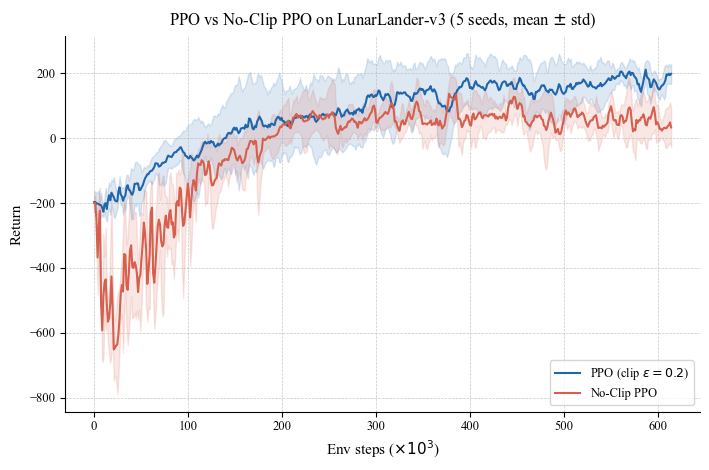

Figure 2 — Clip vs No-Clip：以环境步数对齐#
横轴为环境交互步数（\(\times 10^3\)），两方法总步数完全相同（\(300\times2048\approx614\)k），排除「好策略 episode 更长导致 episode 数更少」的混淆因素。PPO-Clip（蓝）全程稳定占优（5 seeds，均值 ± 标准差）。
# ── Fig 2: Clip vs No-Clip (x = env steps ×10³, fair comparison) ───────────
fig, ax = plt.subplots(figsize=FIGSIZE)
plot_mean_std_steps(ax, clip_ep_steps, clip_returns, BLUE, 'PPO (clip $\\epsilon=0.2$)', SMOOTH_WIN)
plot_mean_std_steps(ax, noclip_ep_steps, noclip_returns, RED, 'No-Clip PPO', SMOOTH_WIN)
style_axes(ax)
ax.set_xlabel('Env steps ($\\times 10^3$)')
ax.set_ylabel('Return')
ax.set_title('PPO vs No-Clip PPO on LunarLander-v3 (5 seeds, mean $\\pm$ std)', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig2_clip_vs_noclip.pdf', bbox_inches='tight')
plt.show()
print('Saved fig2_clip_vs_noclip.pdf')
Saved fig2_clip_vs_noclip.pdf

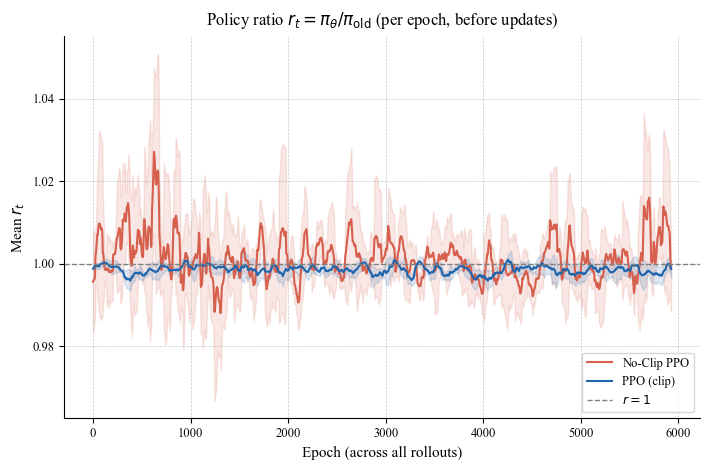

Figure 3 — 策略比值 \(r_t\) 的演化#
每个 epoch 开始前、以全批数据测量均值 \(r_t=\pi_\theta/\pi_{\text{old}}\)：无 Clip（红）偏离更大，早期可达 \(\sim 1.017\)；PPO-Clip（蓝）始终贴近 1。均值之外，个别 transition 的 \(r_t\) 可远超 1.2 的 clip 边界——正是这些尾部被截断，防止了错误梯度的累积。
# ── Fig 3: Policy ratio per epoch ────────────────────────────────────────────
fig, ax = plt.subplots(figsize=FIGSIZE)
sw = max(1, N_ROLLOUTS * K_EPOCHS // 80)
plot_mean_std(ax, noclip_ratios, RED, 'No-Clip PPO', smooth_win=sw)
plot_mean_std(ax, clip_ratios, BLUE, 'PPO (clip)', smooth_win=sw)
ax.axhline(1.0, color=GRAY, linewidth=1.0, linestyle='--', label='$r=1$')
style_axes(ax)
ax.set_xlabel('Epoch (across all rollouts)')
ax.set_ylabel('Mean $r_t$')
ax.set_title('Policy ratio $r_t = \\pi_\\theta / \\pi_\\mathrm{old}$ (per epoch, before updates)', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig3_policy_ratio.pdf', bbox_inches='tight')
plt.show()
print('Saved fig3_policy_ratio.pdf')
Saved fig3_policy_ratio.pdf
小结#
同一批数据复用 \(K\) 轮是 PPO 的效率来源，也是风险来源：没有约束时策略会被推离数据来源策略，产生灾难性更新；
clip 的本质是对比值 \(r_t\) 越界的部分截断梯度，把更新限制在信任域内；
读图要点：Figure 3 的均值比值只轻微偏离 1，但破坏来自尾部——约束要看分布，不能只看均值。
