SAC — 最大熵与三个核心机制#
本 notebook 在 Pendulum-v1 上验证 sac.tex 中 SAC 的三个核心设计：
自动温度调节（auto α）vs 固定 α；

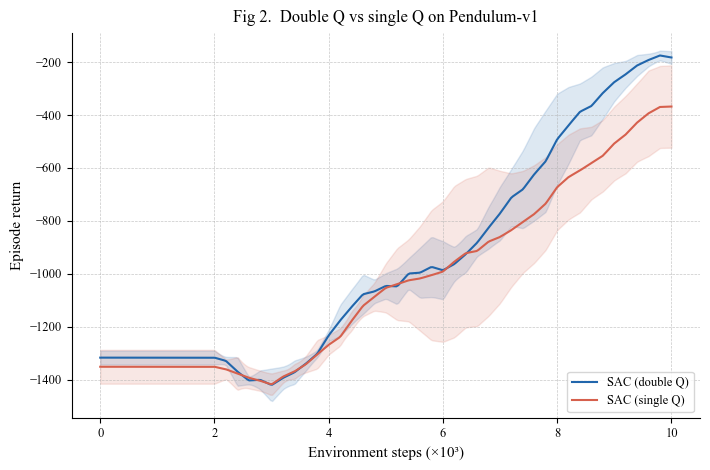

双 Q 网络（Clipped Double Q）vs 单 Q 网络；

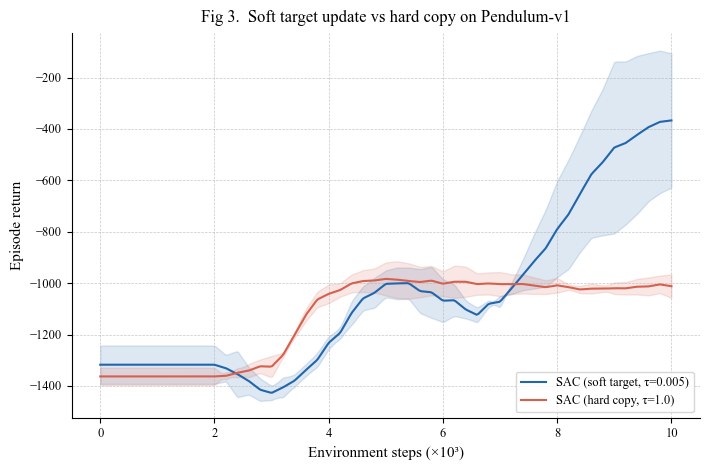

软目标网络更新（τ=0.005）vs 硬拷贝（τ=1.0）。
输出图：
fig1_entropy_ablation.pdffig2_double_q.pdffig3_soft_target_update.pdf
预计运行时间：约 20–40 分钟（CPU，3 seeds × 10k steps）。
import random
import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.distributions import Normal
import matplotlib
import matplotlib.pyplot as plt
try:
import gymnasium as gym
GYM_BACKEND = 'gymnasium'
except ImportError:
import gym
GYM_BACKEND = 'gym'
matplotlib.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman', 'DejaVu Serif'],
'pdf.fonttype': 42,
'ps.fonttype': 42,
'axes.labelsize': 11,
'xtick.labelsize': 9,
'ytick.labelsize': 9,
'legend.fontsize': 9,
})
BLUE = '#2166AC'
RED = '#D6604D'
GRAY = '#808080'
FIGSIZE = (7.2, 4.8)
OUTDIR = '.'
ENV_NAME = 'Pendulum-v1'
N_SEEDS = 3
MAX_STEPS = 10000
START_STEPS = 1000
BATCH_SIZE = 128
BUFFER_SIZE = 100000
HIDDEN_DIM = 128
GAMMA = 0.99
TAU_DEFAULT = 0.005
LR = 3e-4
SMOOTH_WIN = 10
STEP_GRID = np.linspace(0, MAX_STEPS, 300)
print(f'Using backend: {GYM_BACKEND}')
print(f'Device: {torch.device("cuda" if torch.cuda.is_available() else "cpu")}')
Using backend: gymnasium
Device: cuda
def set_seed(seed):
random.seed(seed)
np.random.seed(seed)
torch.manual_seed(seed)
def make_env(name, seed=None):
env = gym.make(name)
if seed is not None and hasattr(env.action_space, 'seed'):
env.action_space.seed(seed)
return env
def reset_env(env, seed=None):
out = env.reset(seed=seed) if seed is not None else env.reset()
return out[0] if isinstance(out, tuple) else out
def step_env(env, action):
out = env.step(action)
if len(out) == 5:
next_state, reward, terminated, truncated, _ = out
episode_done = terminated or truncated
else:
next_state, reward, terminated, episode_done = out
return next_state, reward, bool(terminated), bool(episode_done)
def style_axes(ax):
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.grid(True, linestyle='--', linewidth=0.5, alpha=0.7)
def smooth(x, w):
x = np.array(x, dtype=float)
if len(x) < w:
return x
return np.convolve(x, np.ones(w) / w, mode='valid')
def plot_mean_std_steps(ax, ep_steps_list, ep_returns_list, color, label, smooth_win=10):
curves = []
for ep_steps, ep_returns in zip(ep_steps_list, ep_returns_list):
s = np.array(ep_steps, dtype=float)
r = np.array(ep_returns, dtype=float)
if smooth_win > 1 and len(r) >= smooth_win:
r = smooth(r, smooth_win)
s = s[smooth_win - 1:]
curve = np.interp(STEP_GRID, s, r, left=r[0])
curves.append(curve)
arr = np.array(curves)
mu, std = arr.mean(0), arr.std(0)
xs = STEP_GRID / 1000.0
ax.plot(xs, mu, color=color, linewidth=1.5, label=label)
ax.fill_between(xs, mu - std, mu + std, color=color, alpha=0.15)
class ReplayBuffer:
def __init__(self, capacity):
self.capacity = capacity
self.buffer = []
self.pos = 0
def push(self, *transition):
if len(self.buffer) < self.capacity:
self.buffer.append(transition)
else:
self.buffer[self.pos] = transition
self.pos = (self.pos + 1) % self.capacity
def sample(self, batch_size):
idx = np.random.choice(len(self.buffer), batch_size, replace=False)
batch = [self.buffer[i] for i in idx]
s, a, r, ns, terminated = zip(*batch)
return (
np.array(s, dtype=np.float32),
np.array(a, dtype=np.float32),
np.array(r, dtype=np.float32),
np.array(ns, dtype=np.float32),
np.array(terminated, dtype=np.float32),
)
def __len__(self):
return len(self.buffer)
class GaussianActor(nn.Module):
def __init__(self, state_dim, action_dim, hidden=128):
super().__init__()
self.net = nn.Sequential(
nn.Linear(state_dim, hidden), nn.ReLU(),
nn.Linear(hidden, hidden), nn.ReLU(),
)
self.mean = nn.Linear(hidden, action_dim)
self.log_std = nn.Linear(hidden, action_dim)
def forward(self, state):
h = self.net(state)
mean = self.mean(h)
log_std = self.log_std(h).clamp(-20, 2)
return mean, log_std
def sample(self, state, deterministic=False):
mean, log_std = self(state)
if deterministic:
action = torch.tanh(mean)
return action, None, mean
std = log_std.exp()
eps = torch.randn_like(mean)
u = mean + std * eps
action = torch.tanh(u)
log_prob = Normal(mean, std).log_prob(u).sum(-1)
log_prob -= torch.log(1 - action.pow(2) + 1e-6).sum(-1)
return action, log_prob, mean
class QNetwork(nn.Module):
def __init__(self, state_dim, action_dim, hidden=128):
super().__init__()
self.net = nn.Sequential(
nn.Linear(state_dim + action_dim, hidden), nn.ReLU(),
nn.Linear(hidden, hidden), nn.ReLU(),
nn.Linear(hidden, 1),
)
def forward(self, state, action):
x = torch.cat([state, action], -1)
return self.net(x).squeeze(-1)
class SACAgent:
def __init__(self, state_dim, action_dim, hidden=128, lr=3e-4,
gamma=0.99, tau=0.005, alpha=0.2,
automatic_entropy_tuning=True, use_double_q=True):
self.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
self.gamma = gamma
self.tau = tau
self.action_dim = action_dim
self.automatic = automatic_entropy_tuning
self.use_double_q = use_double_q
self.actor = GaussianActor(state_dim, action_dim, hidden).to(self.device)
self.actor_opt = torch.optim.Adam(self.actor.parameters(), lr=lr)
self.q1 = QNetwork(state_dim, action_dim, hidden).to(self.device)
self.q1_target = QNetwork(state_dim, action_dim, hidden).to(self.device)
self.q1_target.load_state_dict(self.q1.state_dict())
self.q1_opt = torch.optim.Adam(self.q1.parameters(), lr=lr)
if use_double_q:
self.q2 = QNetwork(state_dim, action_dim, hidden).to(self.device)
self.q2_target = QNetwork(state_dim, action_dim, hidden).to(self.device)
self.q2_target.load_state_dict(self.q2.state_dict())
self.q2_opt = torch.optim.Adam(self.q2.parameters(), lr=lr)
if automatic_entropy_tuning:
self.target_entropy = -action_dim
self.log_alpha = torch.zeros(1, requires_grad=True, device=self.device)
self.alpha_opt = torch.optim.Adam([self.log_alpha], lr=lr)
self.alpha = self.log_alpha.exp().item()
else:
self.alpha = alpha
def get_alpha(self):
if self.automatic:
return self.log_alpha.exp().item()
return self.alpha
def update(self, batch):
states, actions, rewards, next_states, terminateds = batch
s = torch.FloatTensor(states).to(self.device)
a = torch.FloatTensor(actions).to(self.device)
r = torch.FloatTensor(rewards).to(self.device)
ns = torch.FloatTensor(next_states).to(self.device)
terminated = torch.FloatTensor(terminateds).to(self.device)
alpha = self.get_alpha()
# Critic target
with torch.no_grad():
next_action, next_log_prob, _ = self.actor.sample(ns)
target_q1 = self.q1_target(ns, next_action)
if self.use_double_q:
target_q2 = self.q2_target(ns, next_action)
target_q = torch.min(target_q1, target_q2)
else:
target_q = target_q1
target_value = r + self.gamma * (1 - terminated) * (target_q - alpha * next_log_prob)
# Q update
q1_pred = self.q1(s, a)
q1_loss = F.mse_loss(q1_pred, target_value)
self.q1_opt.zero_grad()
q1_loss.backward()
self.q1_opt.step()
if self.use_double_q:
q2_pred = self.q2(s, a)
q2_loss = F.mse_loss(q2_pred, target_value)
self.q2_opt.zero_grad()
q2_loss.backward()
self.q2_opt.step()
# Actor update
new_action, log_prob, _ = self.actor.sample(s)
q1_new = self.q1(s, new_action)
if self.use_double_q:
q2_new = self.q2(s, new_action)
min_q_new = torch.min(q1_new, q2_new)
else:
min_q_new = q1_new
actor_loss = (alpha * log_prob - min_q_new).mean()
self.actor_opt.zero_grad()
actor_loss.backward()
self.actor_opt.step()
# Temperature update
if self.automatic:
alpha_loss = -(self.log_alpha * (log_prob + self.target_entropy).detach()).mean()
self.alpha_opt.zero_grad()
alpha_loss.backward()
self.alpha_opt.step()
# Soft target update
for p, t in zip(self.q1.parameters(), self.q1_target.parameters()):
t.data.copy_(self.tau * p.data + (1 - self.tau) * t.data)
if self.use_double_q:
for p, t in zip(self.q2.parameters(), self.q2_target.parameters()):
t.data.copy_(self.tau * p.data + (1 - self.tau) * t.data)
def train_sac(seed, config):
set_seed(seed)
env = make_env(ENV_NAME, seed=seed)
max_action = float(env.action_space.high[0])
state_dim = env.observation_space.shape[0]
action_dim = env.action_space.shape[0]
agent = SACAgent(state_dim, action_dim, **config)
buffer = ReplayBuffer(BUFFER_SIZE)
state = reset_env(env, seed=seed)
ep_returns, ep_steps = [], []
ep_return = 0.0
global_step = 0
while global_step < MAX_STEPS:
if global_step < START_STEPS:
raw_action = env.action_space.sample()
action = raw_action / max_action
else:
with torch.no_grad():
state_t = torch.FloatTensor(state).unsqueeze(0).to(agent.device)
action_t, _, _ = agent.actor.sample(state_t, deterministic=False)
action = action_t.cpu().numpy()[0]
env_action = action * max_action
next_state, reward, terminated, episode_done = step_env(env, env_action)
buffer.push(state, action, reward, next_state, float(terminated))
state = next_state
ep_return += reward
global_step += 1
if len(buffer) >= BATCH_SIZE and global_step >= START_STEPS:
agent.update(buffer.sample(BATCH_SIZE))
if episode_done:
ep_returns.append(ep_return)
ep_steps.append(global_step)
state = reset_env(env)
ep_return = 0.0
env.close()
return ep_returns, ep_steps
def run_experiments(label, config):
print(f'Running: {label}')
all_returns, all_steps = [], []
for seed in range(42, 42 + N_SEEDS):
ret, st = train_sac(seed, config)
all_returns.append(ret)
all_steps.append(st)
print(f' seed {seed}: final-10 mean = {np.mean(ret[-10:]):.2f}')
return all_returns, all_steps

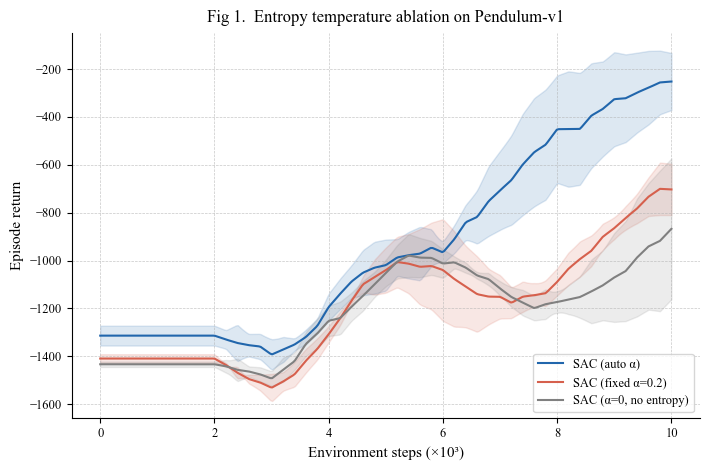

Figure 1 — 自动温度调节 vs 固定 α vs α=0#
温度 \(\alpha\) 控制「回报 vs 熵」的权衡：\(\alpha=0\) 退化为无熵项的纯回报追求，容易过早确定化；固定 \(\alpha=0.2\) 依赖手工调参；自动调节把目标熵当作约束、动态调整 \(\alpha\)，通常更稳（Pendulum-v1，3 个随机种子，阴影为 \(\pm 1\sigma\)）。
print('=== Experiment 1: entropy temperature ablation ===')
auto_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': TAU_DEFAULT, 'automatic_entropy_tuning': True, 'use_double_q': True,
}
fixed_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': TAU_DEFAULT, 'alpha': 0.2,
'automatic_entropy_tuning': False, 'use_double_q': True,
}
noent_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': TAU_DEFAULT, 'alpha': 0.0,
'automatic_entropy_tuning': False, 'use_double_q': True,
}
auto_ret, auto_steps = run_experiments('auto alpha', auto_config)
fixed_ret, fixed_steps = run_experiments('fixed alpha=0.2', fixed_config)
noent_ret, noent_steps = run_experiments('alpha=0', noent_config)
=== Experiment 1: entropy temperature ablation ===
Running: auto alpha
seed 42: final-10 mean = -204.10
seed 43: final-10 mean = -135.24
seed 44: final-10 mean = -415.77
Running: fixed alpha=0.2
seed 42: final-10 mean = -834.20
seed 43: final-10 mean = -571.45
seed 44: final-10 mean = -703.11
Running: alpha=0
seed 42: final-10 mean = -1151.65
seed 43: final-10 mean = -461.62
seed 44: final-10 mean = -989.24
fig, ax = plt.subplots(figsize=FIGSIZE)
plot_mean_std_steps(ax, auto_steps, auto_ret, BLUE, 'SAC (auto α)', SMOOTH_WIN)
plot_mean_std_steps(ax, fixed_steps, fixed_ret, RED, 'SAC (fixed α=0.2)', SMOOTH_WIN)
plot_mean_std_steps(ax, noent_steps, noent_ret, GRAY, 'SAC (α=0, no entropy)', SMOOTH_WIN)
style_axes(ax)
ax.set_xlabel('Environment steps (×10³)')
ax.set_ylabel('Episode return')
ax.set_title('Fig 1. Entropy temperature ablation on Pendulum-v1', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig1_entropy_ablation.pdf', bbox_inches='tight')
plt.show()
print('Saved fig1_entropy_ablation.pdf')
Saved fig1_entropy_ablation.pdf
Figure 2 — 双 Q 网络 vs 单 Q 网络#
自举目标取 \(\min(Q_1, Q_2)\) 抑制最大化带来的系统性高估：双 Q 版本回报更高、更稳；单 Q 的高估被自举不断放大，拖累策略学习（同上设定）。
print('=== Experiment 2: clipped double Q ===')
double_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': TAU_DEFAULT, 'automatic_entropy_tuning': True, 'use_double_q': True,
}
single_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': TAU_DEFAULT, 'automatic_entropy_tuning': True, 'use_double_q': False,
}
double_ret, double_steps = run_experiments('double Q', double_config)
single_ret, single_steps = run_experiments('single Q', single_config)
=== Experiment 2: clipped double Q ===
Running: double Q
seed 42: final-10 mean = -203.11
seed 43: final-10 mean = -148.99
seed 44: final-10 mean = -194.77
Running: single Q
seed 42: final-10 mean = -211.19
seed 43: final-10 mean = -580.12
seed 44: final-10 mean = -311.69
fig, ax = plt.subplots(figsize=FIGSIZE)
plot_mean_std_steps(ax, double_steps, double_ret, BLUE, 'SAC (double Q)', SMOOTH_WIN)
plot_mean_std_steps(ax, single_steps, single_ret, RED, 'SAC (single Q)', SMOOTH_WIN)
style_axes(ax)
ax.set_xlabel('Environment steps (×10³)')
ax.set_ylabel('Episode return')
ax.set_title('Fig 2. Double Q vs single Q on Pendulum-v1', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig2_double_q.pdf', bbox_inches='tight')
plt.show()
print('Saved fig2_double_q.pdf')
Saved fig2_double_q.pdf
Figure 3 — 软目标网络更新 vs 硬拷贝#
软更新 \(\theta^- \leftarrow \tau\theta + (1-\tau)\theta^-\)（\(\tau=0.005\)）让目标网络缓慢跟随、目标值平滑演化；硬拷贝（\(\tau=1.0\)）等价于目标随在线网络同步跳变，训练更颠簸（同上设定）。
print('=== Experiment 3: soft target update ===')
soft_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': 0.005, 'automatic_entropy_tuning': True, 'use_double_q': True,
}
hard_config = {
'hidden': HIDDEN_DIM, 'lr': LR, 'gamma': GAMMA,
'tau': 1.0, 'automatic_entropy_tuning': True, 'use_double_q': True,
}
soft_ret, soft_steps = run_experiments('tau=0.005', soft_config)
hard_ret, hard_steps = run_experiments('tau=1.0', hard_config)
=== Experiment 3: soft target update ===
Running: tau=0.005
seed 42: final-10 mean = -215.50
seed 43: final-10 mean = -150.94
seed 44: final-10 mean = -734.28
Running: tau=1.0
seed 42: final-10 mean = -952.74
seed 43: final-10 mean = -1019.26
seed 44: final-10 mean = -1064.07
fig, ax = plt.subplots(figsize=FIGSIZE)
plot_mean_std_steps(ax, soft_steps, soft_ret, BLUE, 'SAC (soft target, τ=0.005)', SMOOTH_WIN)
plot_mean_std_steps(ax, hard_steps, hard_ret, RED, 'SAC (hard copy, τ=1.0)', SMOOTH_WIN)
style_axes(ax)
ax.set_xlabel('Environment steps (×10³)')
ax.set_ylabel('Episode return')
ax.set_title('Fig 3. Soft target update vs hard copy on Pendulum-v1', pad=8)
ax.legend(loc='lower right')
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig3_soft_target_update.pdf', bbox_inches='tight')
plt.show()
print('Saved fig3_soft_target_update.pdf')
Saved fig3_soft_target_update.pdf
print('All figures saved:')
print(' fig1_entropy_ablation.pdf')
print(' fig2_double_q.pdf')
print(' fig3_soft_target_update.pdf')
All figures saved:
fig1_entropy_ablation.pdf
fig2_double_q.pdf
fig3_soft_target_update.pdf
小结#
最大熵目标让策略在优化回报的同时保持随机性，自动温度调节免去手调 \(\alpha\)；
双 Q 取 min 对付高估偏差，软目标更新对付目标漂移——两者都是稳定自举的手段；
三个机制各自可拆解验证；组合起来，是 SAC 在本 Pendulum 任务上稳定的原因。
