马尔可夫决策过程 — 动态规划实验#
验证 mdp.tex 中的核心结论（经典 4×4 GridWorld，确定性转移）：
策略评估：均匀随机策略的价值函数 \(v_\pi\) 如何随迭代收敛（Bellman 期望方程）；
值迭代：Bellman 最优方程的价值“波”如何从目标格向外传播；
策略迭代 vs 值迭代：两者的收敛动态与扫描代价对比。
环境设定：\(4\times 4\) 网格，右下角为目标格（进入得 \(+1\)，回合终止），其余步奖励为 \(0\)， 折扣 \(\gamma=0.9\)，动作 \(\{\uparrow,\downarrow,\leftarrow,\rightarrow\}\)，撞墙留在原地。
输出图：
fig1_policy_evaluation.pdffig2_value_iteration_wave.pdffig3_policy_vs_value_iteration.pdf
预计运行时间：< 1 分钟（纯 NumPy，CPU）。
%matplotlib inline
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
# ── Academic style ──────────────────────────────────────────────
mpl.rcParams.update({
'font.family': 'serif',
'font.serif': ['Times New Roman', 'DejaVu Serif', 'serif'],
'font.size': 11,
'axes.labelsize': 12,
'axes.titlesize': 13,
'axes.titleweight': 'bold',
'axes.titlepad': 10,
'xtick.labelsize': 10,
'ytick.labelsize': 10,
'legend.fontsize': 10,
'legend.framealpha': 0.9,
'legend.edgecolor': '#CCCCCC',
'figure.dpi': 150,
'axes.spines.top': False,
'axes.spines.right': False,
'axes.grid': True,
'grid.color': '#DDDDDD',
'grid.linestyle': '--',
'grid.linewidth': 0.6,
'lines.linewidth': 2.0,
'savefig.bbox': 'tight',
'pdf.fonttype': 42,
})
# Color palette (same as other chapters)
C_BLUE = '#2166AC'
C_RED = '#D6604D'
C_PURPLE = '#762A83'
C_GREEN = '#4DAC26'
C_GRAY = '#888888'
OUTDIR = '.'
print('Setup complete.')
Setup complete.

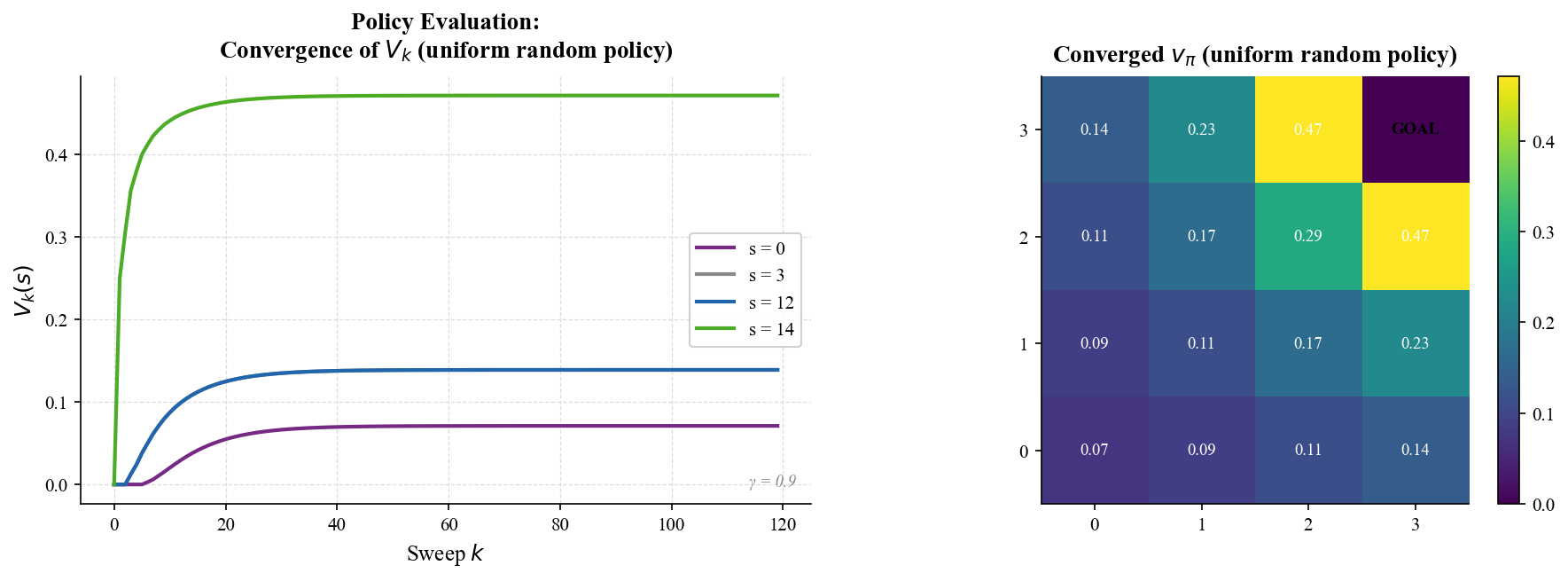

Figure 1 — 策略评估：Bellman 期望方程#
均匀随机策略下迭代 \(V_{k+1} = R^\pi + \gamma P^\pi V_k\)：左图为代表状态的 \(V_k(s)\) 随扫描次数收敛——紧邻目标的格收敛快、远角格收敛慢；右图为收敛后 \(v_\pi\) 的热力图。
# ── GridWorld 设定 ────────────────────────────────────────────
N = 4 # 4×4 网格
NS = N * N # 状态数 16
GOAL = NS - 1 # 右下角 (3,3)
ACTIONS = [0, 1, 2, 3] # 上、下、左、右
GAMMA = 0.9
ARROW = ['↑', '↓', '←', '→']
print(f'{N}x{N} gridworld, {NS} states, goal = state {GOAL}, gamma = {GAMMA}')
def step(s, a):
"""确定性转移：返回 (后继状态 s', 奖励 r)。进入目标格奖励 +1 并终止。"""
r_, c_ = divmod(s, N)
if a == 0: r_ = max(r_ - 1, 0)
elif a == 1: r_ = min(r_ + 1, N - 1)
elif a == 2: c_ = max(c_ - 1, 0)
elif a == 3: c_ = min(c_ + 1, N - 1)
ns = r_ * N + c_
return ns, (1.0 if ns == GOAL else 0.0)
def policy_evaluation(policy, tol=1e-8, max_sweeps=5000):
"""迭代策略评估：V_{k+1}(s) = Σ_a π(a|s)[R(s,a) + γ Σ_s' P(s'|s,a) V_k(s')]。
policy: 每个状态一个动作概率向量。返回 (收敛 V, 每轮扫描的 V 历史)。"""
V = np.zeros(NS)
history = [V.copy()]
for _ in range(max_sweeps):
Vn = np.zeros(NS)
for s in range(NS - 1):
Vn[s] = sum(policy[s][a] * (r + GAMMA * V[ns])
for a in ACTIONS for ns, r in [step(s, a)])
history.append(Vn.copy())
if np.max(np.abs(Vn - V)) < tol:
return Vn, history
V = Vn
return V, history
4x4 gridworld, 16 states, goal = state 15, gamma = 0.9
uniform_policy = [np.ones(len(ACTIONS)) / len(ACTIONS) for _ in range(NS)]
V_pi, hist = policy_evaluation(uniform_policy)
print(f'policy evaluation converged in {len(hist) - 1} sweeps')
print(f'v_pi(goal-adjacent 14) = {V_pi[14]:.3f}, v_pi(corner 0) = {V_pi[0]:.3f}')
# ── Left: 若干状态的 V_k(s) 随扫描次数收敛 ─────────────────────
SELECT = [0, 3, 12, 14] # 远角、远角、目标左侧、紧邻目标
LABELS = [f's = {s}' for s in SELECT]
COLORS = [C_PURPLE, C_GRAY, C_BLUE, C_GREEN]
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
ax = axes[0]
ks = np.arange(len(hist))
for s, label, color in zip(SELECT, LABELS, COLORS):
ax.plot(ks, [h[s] for h in hist], label=label, color=color)
ax.set_xlabel('Sweep $k$')
ax.set_ylabel('$V_k(s)$')
ax.set_title('Policy Evaluation:\nConvergence of $V_k$ (uniform random policy)')
ax.legend()
ax.text(0.98, 0.04, f'γ = {GAMMA}', transform=ax.transAxes,
ha='right', fontsize=9, color=C_GRAY, style='italic')
# ── Right: 收敛后 v_π 的热力图 ─────────────────────────────────
ax2 = axes[1]
img = V_pi.reshape(N, N)
im = ax2.imshow(img, cmap='viridis', origin='lower')
ax2.set_xticks(range(N)); ax2.set_yticks(range(N))
ax2.set_xticklabels(range(N)); ax2.set_yticklabels(range(N))
ax2.set_title(r'Converged $v_\pi$ (uniform random policy)')
ax2.grid(False)
for r_ in range(N):
for c_ in range(N):
s = r_ * N + c_
val = '' if s == GOAL else f'{V_pi[s]:.2f}'
ax2.text(c_, r_, val, ha='center', va='center', fontsize=9,
color='white' if V_pi[s] < 0.5 else 'black')
if s == GOAL:
ax2.text(c_, r_, 'GOAL', ha='center', va='center', fontsize=9,
color='black', fontweight='bold')
ax2.set_title(r'Converged $v_\pi$ (uniform random policy)', pad=8)
fig.colorbar(im, ax=ax2, fraction=0.046, pad=0.04)
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig1_policy_evaluation.pdf', bbox_inches='tight')
plt.show()
print('Saved fig1_policy_evaluation.pdf')
policy evaluation converged in 119 sweeps
v_pi(goal-adjacent 14) = 0.471, v_pi(corner 0) = 0.071
Saved fig1_policy_evaluation.pdf

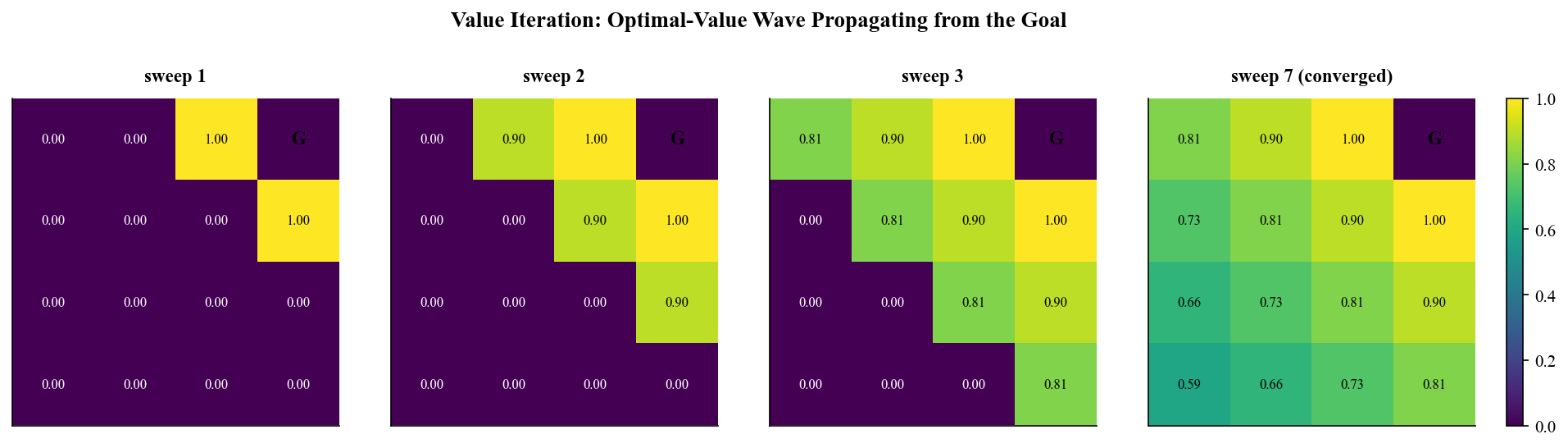

Figure 2 — 值迭代：价值的“波”向外传播#
值迭代 \(V_{k+1}(s) = \max_a [R(s,a) + \gamma \sum_{s'} P(s'|s,a) V_k(s')]\) 每轮扫描把“最优一步 + 最优余下”组合起来。 从目标格（右下角）出发，高价值区域像水波一样逐轮向外扩展——紧邻目标一步可达的格价值最先变成 \(1.0\)，之后每多一轮，价值向外“辐射”一格。
def value_iteration(tol=1e-8, max_sweeps=200):
"""返回 (收敛 V*, 每轮扫描历史, 每轮 Bellman 残差)。"""
V = np.zeros(NS)
history = [V.copy()]
deltas = []
for _ in range(max_sweeps):
Vn = np.zeros(NS)
for s in range(NS - 1):
Vn[s] = max(r + GAMMA * V[ns] for a in ACTIONS for ns, r in [step(s, a)])
d = np.max(np.abs(Vn - V))
deltas.append(d)
history.append(Vn.copy())
V = Vn
if d < tol:
break
return V, history, deltas
V_star, vi_hist, vi_deltas = value_iteration()
print(f'value iteration converged in {len(vi_deltas)} sweeps')
print('V*(14)=', round(V_star[14], 3), ' V*(13)=', round(V_star[13], 3),
' V*(0)=', round(V_star[0], 3))
# 选 4 个有代表性的扫描轮次
shown = [1, 2, 3, len(vi_hist) - 1]
titles = ['sweep 1', 'sweep 2', 'sweep 3', f'sweep {len(vi_hist)-1} (converged)']
fig, axes = plt.subplots(1, 4, figsize=(13, 3.6))
for ax, k, title in zip(axes, shown, titles):
img = vi_hist[k].reshape(N, N)
im = ax.imshow(img, cmap='viridis', origin='lower', vmin=0, vmax=1)
ax.set_title(title, fontsize=11)
ax.set_xticks([]); ax.set_yticks([])
ax.grid(False)
for r_ in range(N):
for c_ in range(N):
s = r_ * N + c_
if s == GOAL:
ax.text(c_, r_, 'G', ha='center', va='center', fontsize=11,
color='black', fontweight='bold')
else:
ax.text(c_, r_, f'{vi_hist[k][s]:.2f}', ha='center', va='center',
fontsize=8, color='white' if vi_hist[k][s] < 0.5 else 'black')
fig.suptitle('Value Iteration: Optimal-Value Wave Propagating from the Goal',
fontsize=13, fontweight='bold')
fig.tight_layout(rect=[0, 0, 1, 0.92])
fig.colorbar(im, ax=axes, fraction=0.02, pad=0.02)
fig.savefig(f'{OUTDIR}/fig2_value_iteration_wave.pdf', bbox_inches='tight')
plt.show()
print('Saved fig2_value_iteration_wave.pdf')
value iteration converged in 7 sweeps
V*(14)= 1.0 V*(13)= 0.9 V*(0)= 0.59
Saved fig2_value_iteration_wave.pdf

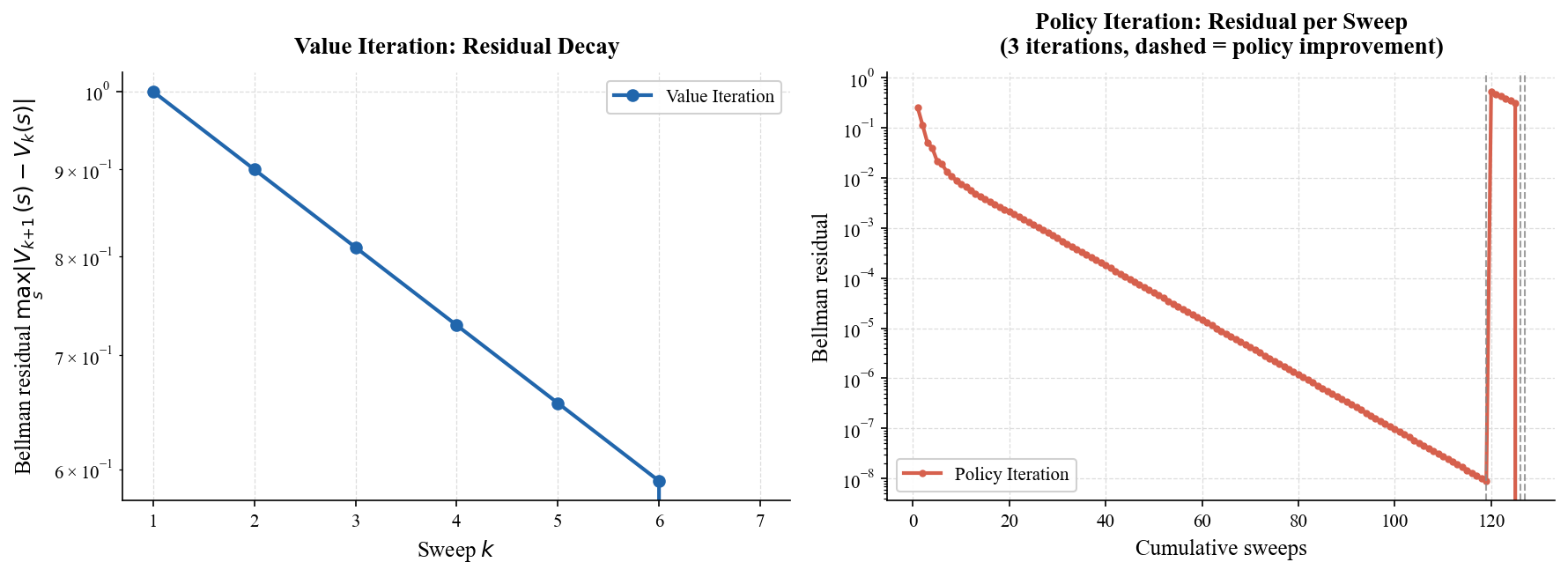

Figure 3 — 策略迭代 vs 值迭代#
两种算法都收敛到同一个 \(V^*\) 与最优策略（数值验证：\(\max_s |V^{VI}(s)-V^{PI}(s)|=0\)），但路径不同：
值迭代：每一轮都对全状态做一次 Bellman 最优备份，残差 \(\max_s |V_{k+1}-V_k|\) 单调几何衰减；
策略迭代：交替“完整策略评估（可能很多轮扫描）→ 贪心改进”，残差呈阶梯式下降——每个阶段内部评估收敛，改进后策略变化又引入新残差。
扫描代价（本例）：值迭代 7 轮扫描即收敛；策略迭代 3 轮迭代、共 127 轮扫描（每轮评估都跑到收敛）。小网格上值迭代更省；策略迭代的优势在策略空间大、评估可截断时体现（广义策略迭代 / 异步 DP）。
def greedy_policy(V):
"""从 V 做一步贪心改进：每个状态选动作价值最高的动作（确定性策略）。"""
pol = []
for s in range(NS):
vals = [r + GAMMA * V[ns] for a in ACTIONS for ns, r in [step(s, a)]]
p = np.zeros(len(ACTIONS))
p[int(np.argmax(vals))] = 1.0
pol.append(p)
return pol
def policy_iteration_trace(tol=1e-8):
"""带残差轨迹的策略迭代（评估采用“暖启动”：沿用上一轮的 V 继续扫描）。
返回 (V, 每轮残差, 累计扫描数, 迭代次数, 每轮迭代结束时的累计扫描数)。"""
policy = [np.ones(len(ACTIONS)) / len(ACTIONS) for _ in range(NS)]
V = np.zeros(NS)
residuals, cum, boundaries = [], [], []
total, iters = 0, 0
for _ in range(50):
Vn = V.copy()
while True:
Vnn = np.zeros(NS)
for s in range(NS - 1):
Vnn[s] = sum(policy[s][a] * (r + GAMMA * Vn[ns])
for a in ACTIONS for ns, r in [step(s, a)])
d = np.max(np.abs(Vnn - Vn))
total += 1
residuals.append(d); cum.append(total)
Vn = Vnn
if d < tol:
break
V = Vn
boundaries.append(total)
new_policy = greedy_policy(V)
iters += 1
changed = any(not np.allclose(p, q) for p, q in zip(policy, new_policy))
policy = new_policy
if not changed:
break
return V, residuals, cum, iters, boundaries
V_pi, pi_res, pi_cum, pi_iters, pi_bounds = policy_iteration_trace()
print(f'policy iteration: {pi_iters} iterations, {pi_cum[-1]} total sweeps')
print(f'max |V*_VI - V*_PI| = {np.max(np.abs(V_star - V_pi)):.2e}')
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
# ── Left: 值迭代残差 ──────────────────────────────────────────
ax = axes[0]
ax.semilogy(np.arange(1, len(vi_deltas) + 1), vi_deltas,
marker='o', color=C_BLUE, label='Value Iteration')
ax.set_xlabel('Sweep $k$')
ax.set_ylabel('Bellman residual $\\max_s |V_{k+1}(s)-V_k(s)|$')
ax.set_title('Value Iteration: Residual Decay')
ax.legend()
# ── Right: 策略迭代残差 ───────────────────────────────────────
ax2 = axes[1]
ax2.semilogy(pi_cum, pi_res, marker='o', markersize=3, color=C_RED,
label='Policy Iteration')
for b in pi_bounds:
ax2.axvline(b, color=C_GRAY, linestyle='--', linewidth=1.0, alpha=0.8)
ax2.set_xlabel('Cumulative sweeps')
ax2.set_ylabel('Bellman residual')
ax2.set_title(f'Policy Iteration: Residual per Sweep\n'
f'({pi_iters} iterations, dashed = policy improvement)')
ax2.legend()
fig.tight_layout()
fig.savefig(f'{OUTDIR}/fig3_policy_vs_value_iteration.pdf', bbox_inches='tight')
plt.show()
print('Saved fig3_policy_vs_value_iteration.pdf')
policy iteration: 3 iterations, 127 total sweeps
max |V*_VI - V*_PI| = 0.00e+00
Saved fig3_policy_vs_value_iteration.pdf
小结#
策略评估把 Bellman 期望方程变成迭代：\(V_{k+1} = R^\pi + \gamma P^\pi V_k\)，收敛到 \(v_\pi\)；
值迭代把 Bellman 最优方程变成迭代：每轮取 \(\max_a\)，残差单调衰减，价值波从目标格向外传播；
策略迭代交替“评估 → 贪心改进”，迭代次数少但每轮评估代价高；
三者（及对应的动态规划思想）都需要已知模型 \(P(s',r|s,a)\)——这正是下一章 TD 学习要抛弃的前提。
